H2D Full Combo w/ 10w Laser

Overview

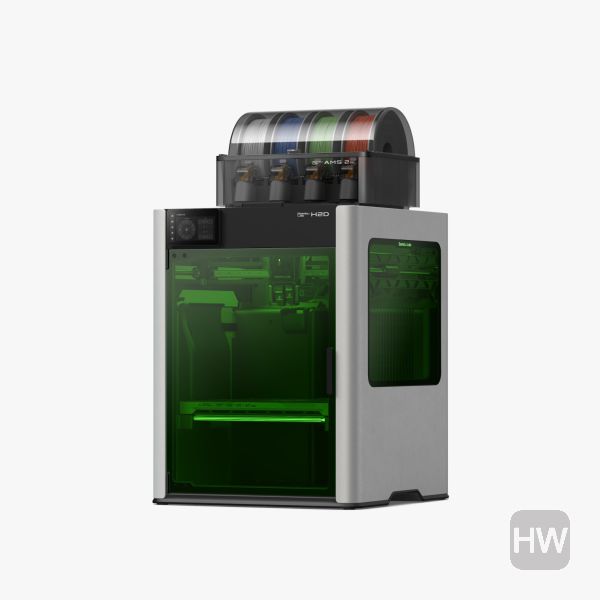

Bambu Lab H2D

• Dual-nozzle Multi-material 3D Printing
• 10W Laser and Cutting Module
• 350*320*325 mm³ Print Volume
• 5μm Resolution Optical Motion Calibration
• Closed-loop Servo Extruder
• 350°C Nozzle & 65°C Active Chamber Heating
• Voltage Range: 100-120 V

* To connect more than one AMS(including AMS 2 Pro, AMS HT), a 4-in-1 PTFE Adapter (FAZ013-N) is needed.

Flexible and rigid, low cost and exotic materials in one print

Combine flexible and rigid materials in a single print to create impressive interlocking structures and innovative designs beyond traditional manufacturing. Pairing high-performance materials with standard ones further reduces costs and boosts material efficiency by using premium materials only where necessary.

Perfect supports with minimal waste, purging and reloading

Print with support is no longer a headache. With H2D’s dual-nozzle setup, one nozzle can be reserved for dedicated support material, allowing secured print and perfect support interface.

Fast and efficient multi-color printing

Dual-nozzle printing reduces purge cycles in multi-color prints. H2D's smart algorithms optimize filament use, maximizing dual-nozzle efficiency to save time and materials.

What-You-See-Is-What-You-Get

The H2D’s BirdsEye camera, combined with computer vision algorithms, delivers top-view alignment accuracy up to 0.3mm. This advanced spatial alignment allows users to place the tool path at the right position on the material – truly "what-you-see-is-what-you-get."*

Maximize material efficiency, minimize waste

Leveraging real-time images from the BirdsEye camera, Bambu Suite can automatically arrange your project according to the shape of your material, i.e left over plywood from the previous project. This feature helps you to get the most out of every material.

Laser Safety Windows

Operate and monitor laser projects safely without the need for goggles, thanks to our safety windows.

Full-auto Calibration

A single tap initiates automated laser focus verification and material measurement, eliminating manual adjustments.

50µm ultra-fine motion accuracy*

An ultra-accurate vision encoder plate, combined with 5µm resolution optical measurements to track and correct toolhead motion, enables the H2D to achieve consistent and reliable distance-independent 50μm motion accuracy across the entire workspace, one order of magnitude better than its predecessor. (*Vision Encoder sold separately)

Break free from size constraints

With a print volume up to 350mm×320mm×325mm*, creating large-scale projects has never been easier! From laser engraving on sizable objects to printing oversized models, the expanded capacity empowers you to bring even your most ambitious ideas to life.

Unleash the full potential of high-performance materials

Equipped with 65°C active chamber heating and a high-temperature hotend reaching up to 350°C, the H2D delivers precise closed-loop temperature control. This advanced system effectively eliminates warping and deformation in high-performance materials, ensuring superior layer bonding and maximizing their full potential.

Consistently print at 600mm/s with ease

The H2D’s purpose-built high-flow hotend ensures reliable, high-speed printing at 600mm/s. Designed for consistent performance, it eliminates mid-print flow rate restrictions, enabling uninterrupted high-speed printing regardless of the print size or complexity.*

Intelligent sensing for precise extrusion control

Bambu Lab's proprietary PMSM servo architecture establishes an intelligent extrusion governance system. It executes 20kHz Torque/Resistance and position sampling to dynamically modulate electromagnetic torque vectors. Stabilizing extrusion and detecting filament grinding and clogging.

Monitor extrusion at the nozzle tip

The H2D features an AI-backed nozzle camera with macro lens. This intelligent monitoring system continuously tracks extrusion patterns, immediately detecting material accumulation, filament deviations, and extrusion failures.

Peace of mind, every time you print

Prior to each operational cycle, H2D's vision system initiates a comprehensive pre-flight checklist: Chamber Integrity Scan – Detects debris across the entire print surface. Hardware Configuration Audit – Instantly identifies nozzle dimensions and build plate properties. Digital-Physical Alignment – Automatically verifies consistency between detected hardware specifications and active slicer parameters.

15 sensors on one filament path

Unlike legacy systems with single filament run-out detectors, the H2D features comprehensive material flow monitoring. Throughout the AMS-to-nozzle path, 15 strategic sensors form an intelligent network, continuously tracking five key parameters: feeding velocity, tension, filament tip location, extruder thermal environment, and dynamic extrusion pressure. This establishes an industry-leading filament behavior control system.

Note

• 2 servo motors include the one on the AMS 2 Pro.
• 3D mesh feature will be available shortly after the product release through firmware update.
• Rotary Attachment is an optional equipment will be available soon, buy at official store.
• Air Purifier is an optional equipment, buy at official store.
• BirdsEye camera is only equipped with H2D laser edition, or can be added with laser upgrade kit.
• Material CodeSync only works with Bambu official materials.
• The optional Vision Encoder is required for Motion Accuracy Enhancement.
• Auto Holes-contour Compensation must be enabled in Bambu Studio, and designated Bambu filament must be used.
• 350mm×320mm×325mm print volume is enable by using identical filaments in both nozzles and print with both nozzles.
• High-flow Hotends are optional equipments, buy at official store.
• The 600mm/s print speed refering is by using Bambu PLA Matte filament.
• Auto Fire Extinguisher is an optional equipment, will be available soon after the product release.
• Due to safety protocol, Developer mode cannot be enabled when using Laser and Cutting functions.
• Creator projects are provided for illustrative purposes only. Bambu Lab does not endorse, and disclaims any representations or warranties regarding creator projects, including, without limitation, the safety, marketability, or usability of any 3D printed works based on such projects. See our Terms of Service for more information.
