21 Pin 6 Function Drop In Decoder for European Locos

Overview

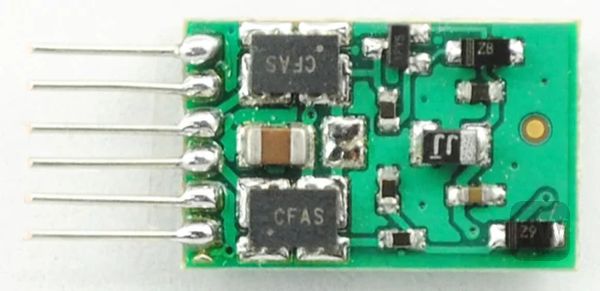

EUN651

• This decoder is compatible with the NEM651 standard interface found in some N-scale Bachmann and Fox Valley Models locomotives.
• Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
• Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
• DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
• Variable Momentum: Allows you to make custom acceleration and deceleration curves.
• Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
• Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
• Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
• Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
• Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
• Airwire™ Compatible: Fully compatible with Airwire™ operation.
• User-Loadable Speed Tables: Configure custom speed curves and set speed limits.

Interface Type: Direct-Plug (NEM651)

Dimensions (L x W x H): 0.544" x 0.345" x 0.112" or 13.82mm x 8.76mm x 2.84mm

Scale: N Scale

Continuous/Peak: 1.0/2.0 Amp

Total Functions: 2

Function Rating: 80 mA

12V Outputs: 2
