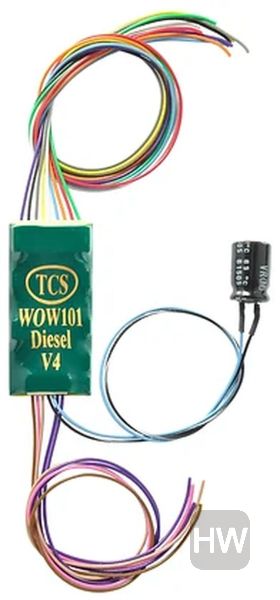

The WOW101 is a universal decoder for locomotives with DCC-ready 9-pin plugs, or which cannot accommodate a motherboard or WOWKit. This decoder may be hard-wired or plugged directly into any locomotive with a 9-pin JST plug.
The WOW101 is a universal decoder for locomotives with DCC-ready 9-pin plugs, or which cannot accommodate a motherboard or WOWKit. This decoder may be hard-wired or plugged directly into any locomotive with a 9-pin JST plug. The WOW101 is compatible with any T-Series harness, and also includes an auxiliary harness for attaching your speaker, AUX input, Keep Alive®, and for the additional lighting functions (F3 and F4).
NOTE: WOW101 decoders do not have on-board resistors. If you are going to use LED lighting with this product, you must include external resistors.
For a complete list of sounds, check out the "Sounds List" under the "Documents" tab.
CD-Quality Sound: TCS' world-renowned CD-quality sound. 16 Bits of resolution at 44.1kHz sample rate.
Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
Variable Momentum: Allows you to make custom acceleration and deceleration curves.
Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
Airwire™ Compatible: Fully compatible with Airwire™ operation.
Audio Assist®: TCS exclusive auditory feedback programming system. Program your decoder without the need to memorize CV's!
User-Loadable Speed Tables: Configure custom speed curves and set speed limits.
Throttle Modes: Choose from multiple throttle modes to meet your operating needs.
Proto Notch™: A WOWSound original feature which uses TCS’ exclusive auto-adjusting BEMF technology to automatically choose the active notch sound. Prototype Mode also offers dynamic sound volumes which accurately model the real-life equivalent. Also includes pre-programmed acceleration and deceleration values.
Interface Type: Hard-Wire
Direct-Plug (9-Pin JST)
Dimensions (L x W x H): 1.35" x 0.658" x 0.22" or 34.29mm x 16.72mm x 5.59mm
Scale: HO Scale
Continuous/Peak: 1.3/2.0 Amp
Total Functions: 6
Function Rating: 100 mA
12V Outputs 6
Speaker Selection
This decoder is optimized for 8 Ω speakers (not included).
This decoder uses and audio amplifier capable of supplying up to 2 Watts of power to an 8 Ohm load at maximum volume. An 8 Ohm speaker with a 1 Watt minimum power rating is recommended for use with this decoder as it comes out of the package. If you are using an 8 Ohm speaker with a power rating of 2 Watts or less, you must reduce your master volume to prevent speaker failure or amplifier stress.
The amplifier(s) on a WOWSound product can support speakers with impedance ratings as low as 4 Ohms. A reduction in impedance will require a higher power dissipation rating (more Watts) on said speaker. The minimum power requirement for a 4 Ohm speaker is 4 Watts. If you are using a 4 Ohm speaker with a power rating of 4 Watts or less, you must reduce your master volume to prevent speaker failure or amplifier stress.
Speaker enclosures greatly increase speaker performance in most cases - improving the apparent volume by more efficiently directing the flow of air and reducing or eliminating destructive interference.
