TCS MC2 2-Function Decoder

Brand: TCS
$54.99

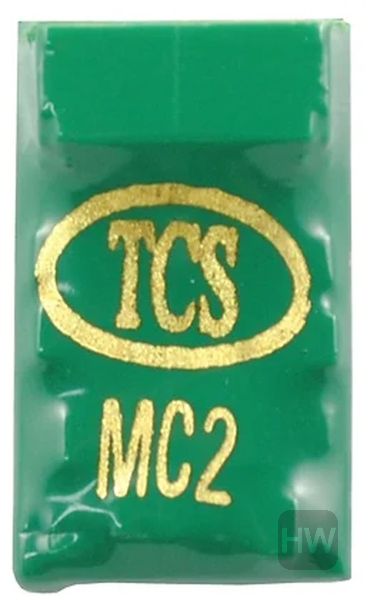

The MC2 is a 2-function HO and N scale hard-wire decoder with a 7 pin JST socket. The MC2 is designed for use in locomotives where a T-series or M-Series decoder is too large.
Availability:
In stock
UPC
879508000092
Part #
TCS1013

Overview

MC2

The MC2 is a 2-function HO and N scale hard-wire decoder with a 7 pin JST socket. The MC2 is designed for use in locomotives where a T-series or M-Series decoder is too large. This decoder may be hard-wired, but is also available with 8-pin NMRA plugs installed. See the "Variants" page for more options.

  • Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
  • Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
  • DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
  • Variable Momentum: Allows you to make custom acceleration and deceleration curves.
  • Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
  • Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
  • Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
  • Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
  • Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
  • Airwire™ Compatible: Fully compatible with Airwire™ operation.
  • User-Loadable Speed Tables: Configure custom speed curves and set speed limits.

Interface Type: Hard-Wire / Direct-Plug (7-Pin JST)

Dimensions (L x W x H): 0.709" x 0.419" x 0.191" or 18.02mm x 10.63mm x 4.85mm

Scale: HO Scale N Scale

Continuous/Peak: 1.0/2.0 Amp

Total Functions: 2

Function Rating: 100 mA

12V Outputs: 2
