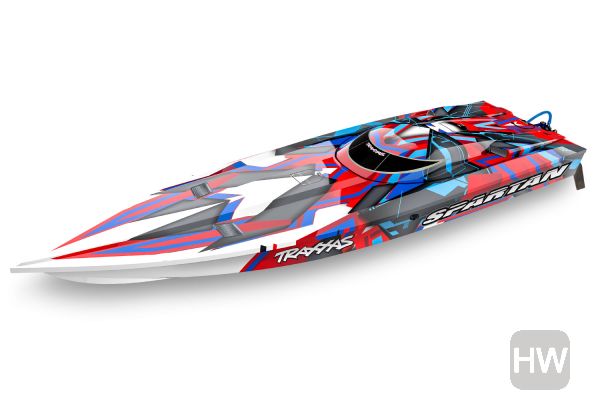

Spartan is the kind of boat you expect from Traxxas. Its 50+mph fury makes even the most insatiable, power-hungry enthusiasts jump up and take notice. Spartan means business with its super-rigid, 36-inch deep-V hull, smooth, cable-drive efficiency, innovative water cooling system, and precision aluminum and stainless steel drive controls. The clean, modern hull design is built up in layers for maximum rigidity and its bold paint makes a statement on the water. The integrated battery trays secure a wide variety of battery packs from 8.4V NiMH batteries all the way up to 8400mAh 3s LiPo packs. A high-output TQi 2.4 GHz radio with the innovative Traxxas Stability Management (TSM) system keeps Spartan under complete control as it slices through the water. Spartan delivers the power, speed, convenience, and fun for which Traxxas' award-winning cars and trucks are known. Prepare yourself for the ultimate RC boating power trip, only from Traxxas.
Spartan is fully assembled with a TQi™ 2.4 GHz radio system, Velineon brushless power system, applied graphics, and detailed instructions. Traxxas backs the Spartan and all of our products with industry-leading support that is second to none. A staff of skilled representatives is on-hand to answer your questions via phone, website, or e-mail. Unmatched parts support allows Spartan to be serviced with parts and support from thousands of hobby dealers worldwide. Traxxas goes the extra mile to ensure that your RC experience is fun, easy, and fast!
MODEL 57076-4: Fully assembled, Ready-To-Race®, TQi™ 2.4 GHz radio system, Traxxas Stability Management®, Velineon® 540XL Brushless Motor, VXL-6s Marine ESC, and factory-applied graphics.
Extreme Velineon brushless horsepower delivers the muscle you want with the reliability you expect from Traxxas. The VXL-6s Marine electronic speed control is built for true 6S LiPo power.* On-board low voltage detection helps you maintain your batteries. The extra voltage and current maximizes the potential of the Velineon 540XL motor for extreme 50+mph speed. The sensorless Velineon 540XL motor is designed for high-rpm performance and reliability with ultra high-temperature sintered Neodymium magnets, a precision-balanced rotor, and efficient, high-speed ball bearings. Cooling water is routed through the innovative speed control case and then into a unique sealed motor jacket that allows cooling water to flow directly against the motor for maximum possible heat transfer. The Spartan keeps its cool, run after run, for trouble-free all-day fun.
Total Control
Traxxas models deserve the world's most advanced Ready-To-Race® radio system. The radio system after all is the sole connection between the driver and machine. It has to be precise, comfortable, powerful, and reliable. The Traxxas® TQi™ radio system arrives with a full complement of tuning features; long-range, high-output, 2.4 GHz signal, and proven Traxxas reliability for rock-solid performance. It's so advanced; it doesn't even need an external antenna. However, the most important feature may already be in your pocket. The TQi can be equipped with an optional Traxxas Link Wireless Module (6511, sold separately) that turns your iPad® iPhone® or iPod touch® into a powerful tuning tool for your Traxxas model. The full-color display combines with the Traxxas Link™ App to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control.
Traxxas Stability Management® (TSM) makes it possible to experience all the extreme power, speed, and acceleration that was engineered into Traxxas models by making it much easier to control the boat in any water conditions. Punch it off the line and TSM goes to work sensing the boat’s direction and making steering corrections to provide straight-ahead full throttle acceleration without loss of control. TSM also works when turning, first making intuitive corrections to maintain the vehicle’s line, then hammer the throttle earlier in the turn for much faster exit speeds. Traxxas TSM gives all the benefits modern electronic stabilization has to offer without intruding on driving fun or introducing unexpected side effects that can be found on other systems. Traxxas engineers developed superior tuning algorithms that run on high-speed, precision electronic components to create a system that works invisibly, in the background, without ever limiting throttle. TSM can be fine-tuned (or turned off) for different conditions by simply adjusting the multi-function knob on the TQi transmitter, or by adjusting the slider in the Traxxas Link app. The result is driving faster, with more ease, and having more fun. In fact, the driver may not even realize how much TSM is helping until it is turned off and their driving skills are tested without it! Everything is waterproof and Traxxas-tough as you’d expect. This is performance on a whole new level!
The Spartan's clean, modern hull design is built up in layers for maximum rigidity where it matters most, the transom and ride pad. Lightweight yet incredibly strong, Spartan's ABS hull is designed to withstand the stress of high-voltage brushless horsepower, without the weight penalty of a fiberglass hull. The transom bulkhead also incorporates bosses for the trim tabs, turn fins, rudder support, and drive strut, eliminating the need for additional hardware inside the hull. In the Spartan's bow, molded foam is form-fitted to the interior, adding security as it further stiffens the hull. Outside the hull, Spartan impresses with its wild factory-applied graphics—a Traxxas trademark.
Spartan's hatch is secured by a single body clip and removes in seconds for fast and easy access to the hull interior. No sealing tape is required, and a specially designed drip rail in the hull channels away any water that washes over the hatch.
You'll never drop a body clip into the lake with Spartan! A flexible rubber lanyard keeps the body clip secured to the hatch so it's always at the ready. It's just one of the many small details that makes a day at the lake with Spartan fun and easy.
Nothing was overlooked in the effort to optimize every detail of the Spartan—even the water outlet is unique! Instead of an unsightly piece of tubing, Spartan's water outlet is streamlined and integrated into the hull, maintaining its sleek look.
Spartan's bold graphics make it the most stunning boat on the lake, with a custom look even pro painters can't match. No painting or decals are required; all the graphics are pre-applied to get Spartan out of the box and into the water with speed and style.
Spartan's hull is further strengthened by its integrated battery trays, which securely hold a variety of battery packs from 8.4V NiMH batteries all the way up to 8400mAh 3s LiPo packs. The roomy trays allow the hull to be trimmed by positioning the packs fore and aft, and convenient hook and loop straps secure the batteries.
A signature feature of the Spartan is its unique Power Module. The VXL-6s speed control, waterproof receiver box, and powerful 2056 high-torque servo are all bolted securely to the tray. Detach the steering linkage and flex cable, then loosen just two screws to release the Spartan's electronics. All of the electronic components, including the motor and stuffing tube, lift out as a unit. No other boat makes it so easy to access the hull interior and electronics, and the molded parts fit into the hull precisely for perfect alignment without crude brackets or wooden stringers. The Power Module also contributes to the Spartan's stability by holding the electronic components low in the hull. Spartan's low center of gravity, combined with its wave-cutting deep-V hull, gives it high stability without compromising high performance.
Some boats rely on set-screws to pinch the flex shaft in place. Set screws are prone to loosening and can damage the flex shaft—that's not the Traxxas way. Spartan features a clamping collet that holds the cable tightly and centers it perfectly with the motor's output shaft for smooth, efficient operation. When it's time for maintenance, the collet releases quickly with a twist of the included precision wrench. Once loosened, the prop and flex cable simply slide out. Reinstallation is just as fast, making it easy to keep your Spartan running in absolute peak form.
Spartan's surface-piercing prop is optimized to get the hull on plane quickly without cavitation and to run at maximum speed with the least current draw. Traxxas engineers spent many hours testing prop configurations to find the perfect balance of performance, efficiency, and durability. Molded composite construction makes the prop light and tough, with no balancing or sharpening required.
Extreme brushless horsepower demands rigid drive hardware and a flex-free transom for sharp and predictable handling. The rudder, rudder support and drive strut are extruded and machined from rugged 6000-series aluminum alloy for maximum strength, and then polished and anodized vivid blue for that unmistakable Traxxas look. When you lean the Spartan over into a water-carving turn, you can count on the rudder to dig in and hold your line. The rudder incorporates a pickup for the water-cooling system, and uses Oilite bushings for smooth steering action. The drive strut also uses Oilite bushings for corrosion-free performance, and features an oiling hole for easy maintenance.
Spartan's dual trim tabs and turn fins are critical to its high-speed performance. The parts are precision die-cut and bent from stainless steel to resist corrosion as they provide aggressive cornering 'bite' and the proper hull attitude for water-boiling speed.
Spartan uses corrosion-resistant stainless-steel and nickel-plated hardware throughout for good looks, easy maintenance, and lasting performance. Convenient hex heads make Spartan a pleasure to maintain.
Waterproof electronics are a must in the marine environment. Traxxas electronics are fully waterproof (not just water resistant). The speed control, servo, and receiver all feature rugged waterproofing protection for dependable operation you can count on. It's an innovation you'll find only in Traxxas vehicles.
Spartan demands a powerful steering servo for responsive performance, and Traxxas delivers with the 2056 high-torque servo. O-ring seals make the servo completely waterproof, and there's steering muscle to spare with 80 oz-in of torque at your command. That's twice the power of typical "standard" servos.
Traxxas' patented waterproof receiver box routes the antenna and servo wires neatly through a special watertight seal. To protect the receiver, a custom shaped blue O-ring seals the receiver box. Thanks to the unique design, the receiver can be removed for service and even aftermarket receivers can be used, without losing the sealing properties of the box.
Custom Specification |
Product Specifications
|
||||||||||||||||||||||||||||||||||||||||||
Alternative product SKU's: TRX570764REDR, TRX 570764REDR, TRA 570764REDR, TRX57076-4REDR, TRX 57076-4REDR, TRA57076-4REDR, TRA 57076-4REDR, 57076-4REDR
