Ford Baja Bronco CC-02 Kit

Overview

RC FORD BAJA BRONCO

Cc-02

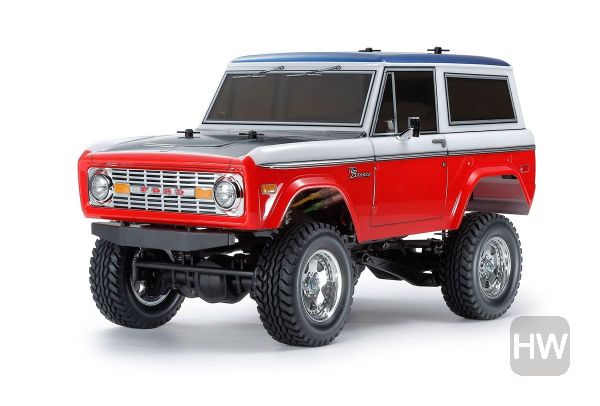

The vehicle depicted in this R/C assembly kit recreates the first-generation FORD Bronco on the cross-country CC-02 chassis. The first-generation Ford Bronco was relatively compact and extremely capable off-road, and this 4WD vehicle participated in numerous races thanks to custom fabrication teams of the day. The Baja Bronco edition was sold from 1971 to 1975 to commemorate its victories in prestigious Baja race events such as the Baja 500 and 1000. The Baja edition had a white and red body with a blue roof and black hood plus reinforced components such as suspension. This special Bronco enjoys great popularity even to this day!

CC-02 Chassis - Off Road, Evolved

Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with spoke wheels and semi-pneumatic rubber tires.

• 1/10 scale R/C model assembly kit. Length: 395mm, width: 196mm, height: 215mm. Wheelbase: 242mm (Short wheelbase variant of the CC-02).
• Lightweight, durable polycarbonate body.
• The distinctive color scheme with red, white, and blue requires painting from the builder.
• Matte-finish hood is recreated by stickers.
• The CC-02 chassis has a ladder frame, which was inspired by full-size vehicles, provides both rigidity and allows stable performance even on tricky rocky and dirt roads.
• 5-spoke wheels are paired with block pattern tires.
• Includes short propeller shafts.
• Includes ESC and 540-Type brushed motor.
• Required to complete: 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint.

SPECIFICATIONS

Adjustable Gear Ratio: Yes

Bearings: Plastic bushing

Body Material: Polycarbonate

Body Stickers: Included

Chassis Material: FRP Fiberglass Reinforced Plastic

Chassis Type: CC-02

Construction Type: Assembly Kit

Differential Type: Gear

Drive Type: 4WD

Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)

Motor: 540-brushed type

Required To Complete: 2-channel radio, steering servo, 7.2-7.4volt battery & battery charger, and Tamiya PS paint.

Scale: 1/10

Shock Damper: CVA Oil Filled

Suspension: 4-link

Terrain Use: Multi-Purpose
