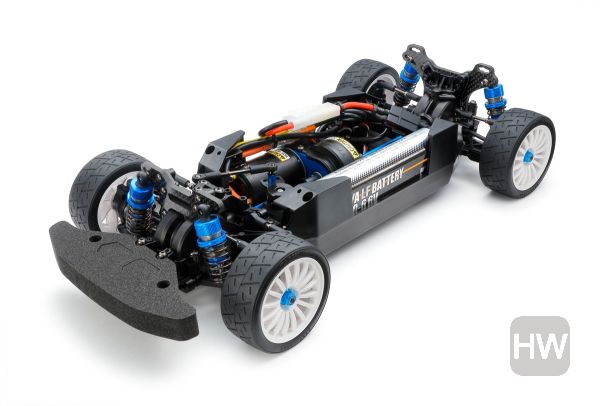

The XV-02 RS chassis is an on-road variant of the rally XV-02 platform. The kit is mainly oriented for on-road, and features updates such as dedicated 3.5mm thick carbon fiber damper stays, aluminum-cylinder oil dampers employing shaft length suited for on-road performance, and carbon fiber-reinforced rigid lower chassis.
1/10 scale R/C chassis assembly kit.
Features aluminum-cylinder oil dampers employing shaft length suited for on-road performance and dedicated 3.5mm thick carbon fiber damper stays, and carbon fiber-reinforced rigid lower chassis.
18-spoke wheels are paired with racing semi-slick tires.
Equipped with front midship motor plus identical length front and rear long propeller shafts.
Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
Use 39T gears (w/15T gears) on the front and rear for standard drive balance, 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear. *Use the latter two with slipper clutch and center differential.
A longitudinal battery pack is positioned in the center-left for optimum balance.
The flat chassis bottom and skid angle on the front bumper further contribute to limit surface contact under driving conditions.
Caster blocks feature an angle of six degrees.
Includes front and rear universal drive shafts, and an aluminum servo mount.
Required to complete: 2-channel radio, steering servo, ESC, 7.2-7.4volt battery with compatible charger, 540 motor, and 190mm Body set.
Required To Complete: Required to complete: 2-channel radio, steering servo, ESC, 7.2-7.4volt battery with compatible charger, 540 motor, and 190mm Body set.
