Few cars in history have achieved the cult status of the legendary Ford® RS200 rally car. Built to conquer the ultra-competitive Group B racing series, the RS200 combined outrageous power with a featherweight chassis and AWD traction. Traxxas honors the rich history of the RS200 with the all-new Mini Rally VXL Ford RS200 replica. Equipped with 1/10 scale VXL-3s™ brushless power, the compact Mini Rally VXL scorches the pavement with astonishing acceleration and 55+ mph top speed. Race like a champion in your own rally stage with the Traxxas Mini Rally VXL Ford RS200.
Mini Rally VXL includes a 3500 mAh 2-cell LiPo battery for strong punch, long run times, and 40+ mph speed. The included 2-amp USB-C LiPo balance charger provides quick and reliable charging with Traxxas iD® safety and simplicity. Step up to 3s power with the 2300 mAh 3-cell LiPo Battery (part 2824X, sold separately) to unleash 55 mph speed.
Mini Rally VXL is nearly the same length as Mini Slash, but its wheelbase is over an inch longer. The extended wheelbase improves stability and reduces front and rear overhands for aggressive off-road action.
Mini Rally VXL’s shaft driven AWD driveline is as rugged as it is efficient. With driveshafts and differentials originally designed for Traxxas’ toughest 1/10 scale trucks Mini Rally VXL delivers 3s brushless power and unstoppable traction to all four corners. A center differential absorbs driveline shocks and allows fine tuning for different surfaces.
Mini Rally VXL uses the same high-performance 2075X metal-gear servo found in full-size 1/10 scale Traxxas vehicles. The 2075X delivers digital precision and metal-gear durability along with 125 oz-in of tire-wrenching torque.
The high-output Traxxas TQi™ 2.4 GHz radio system delivers superior range, 30-model memory, and the precise control required for a high-speed machine. Add sensors and the Traxxas Link Wireless Module, (both sold separately) to send real-time telemetry to your smart phone using the free Traxxas Link™ app.
With so much hard-hitting power on tap, even the best drivers sometimes need a helping hand. Traxxas Stability Management (TSM) is there when you need it to help harness Mini Rally VXL’s brutal 3s power for all-out acceleration and control. TSM lets you adjust the amount of assistance from off to 100% right from your transmitter.
Traxxas designed Mini Rally VXL to deliver the same go-anywhere driving freedom as its full-size counterpart. Reliable waterproof construction extends your playground into water, snow, and mud for unlimited fun, regardless of the weather.
Mini Rally VXL comes equipped with functional LED light pods in front to complete the Group B Rally look and blaze a trail through the darkness. The high-output LEDs come protected in a molded housing with reflectors and lenses for maximum scale authenticity.
MODEL MODEL 108046-1: Mini Rally VXL: mini-scale rally car with Ford RS200 clipless body, fully assembled, Ready-To-Race®, with TQi™ 2.4 GHz radio system with TSM®, and Velineon® VXL-3s™ brushless power system. Includes 2-cell LiPo battery and 2-amp USB-C charger.
40+ mph with included 2-cell LiPo Battery
55+ mph with optional 3-Cell LiPo Battery (sold separately)
VXL-3s™ Waterproof Electronic Speed Control
Velineon® 3500 Kv Brushless Motor
Battery and Charger Included
TQi™ 2.4 GHz High Output 2-Channel Radio System
Traxxas Stability Management® (TSM)
1/10 Scale AWD Driveline
Modular Long-Wheelbase Chassis
Easy Battery Access
Steering
Suspension
Oil-Filled Ultra Shocks™
Front Splitter and Skid Plates
Wheels and Tires
Hex Hardware with Rust-Resistant Black Oxide Coating
Sealed Ball Bearings
Like a full-size Group B rally car, the Traxxas Mini Rally VXL Ford RS200 rockets off the line with AWD traction and razor-sharp precision. Traxxas engineered Mini Rally VXL to make its outrageous power accessible to all drivers with superior handling and the reassurance of TSM®. Equally at home on dirt or pavement, Mini Rally VXL turns almost any surface into a rally stage.
The Velineon VXL-3s brushless power system lies at the heart of Traxxas’ fastest and most powerful 1/10 scale vehicles. This extreme 11.1-volt powerplant comes installed in the compact Mini Rally chassis for outrageous performance. The result is astonishing acceleration, 55+ mph speed, and wheel-standing power at any rpm.
Mini Rally VXL uses revolutionary chassis design elements pioneered in Mini Maxx. Perfectly sized to fit into a backpack, Mini Rally VXL transforms 1/10 scale performance and durability into a supremely compact chassis. Just one look at the rigid, unified structure and you know it’s built Maxx tough.

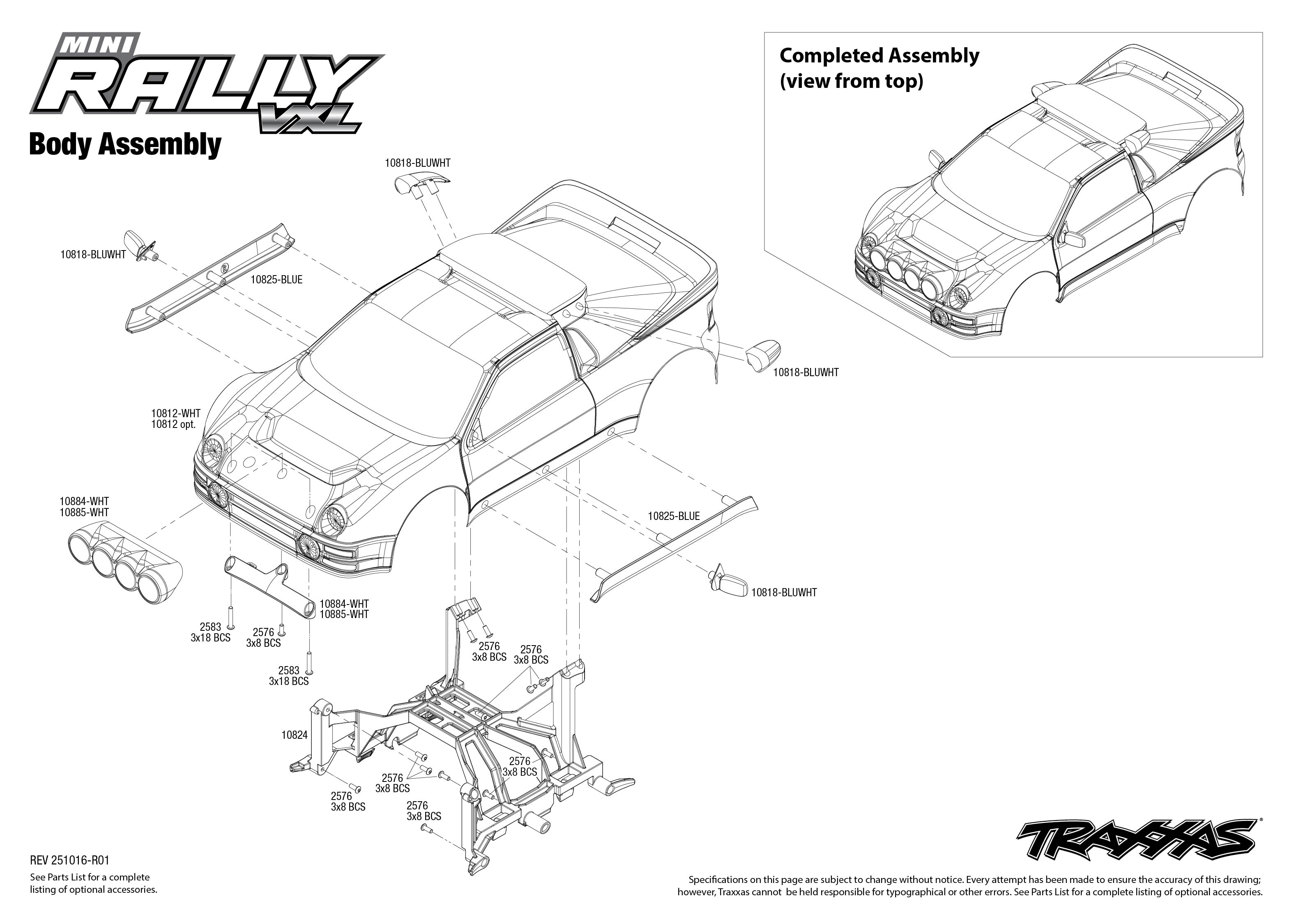

An iconic car like the Ford RS200 requires a detailed replica body with clean flowing lines. Traxxas clipless technology holds the RS200 body tightly to the chassis with a reassuring snap to let you know it’s secure. Molded side mirrors and air scoops attach to the internal frame for extra strength and rigidity.
Mini Rally VXL wears new high-traction rally tires for outstanding grip on pavement and dirt. Internal reinforcing ribs replace conventional tire foams for more consistent and longer lasting tread support. Mounted to new 8-spoke rally-inspired wheels, the tires feature aggressive tread blocks for exceptional bite on loose surfaces.
The tires on Mini Rally VXL are unique with densely packed biting edges and sipes for maximum traction on loose surfaces. Internal reinforcing ribs eliminate conventional foam inserts that can absorb water and upset the balance. A softer compound rear tire helps balance the handling for greater control.
Mini Rally VXL’s interlocking skid plates fit tightly together to form a smooth, snag-free undertray. They’re also quick and easy to replace as wear builds up so there’s no need to hold back.
A reinforced front splitter acts as a hidden bumper to align the body and add extra rigidity to the front of the car. A strong rear bumper hides under the body for extra impact resistance. Tough side skirts attach directly to the inner cage to hold the body firmly in place.
Mini Rally VXL uses the same full-size oil-filled Ultra Shocks found on Traxxas’ 1/10 scale vehicles for truly bottomless suspension travel. The Ultra Shocks’ large oil capacity and rugged design soaks up uneven pavement and off-road abuse for smooth driving performance. They are easy to tune with a wide range of available oils, springs, and pistons.
A fixed gear mesh system with preset positions improves precision and eliminates the guesswork involved with setting gear mesh. Insert the motor screw through the desired gearing position for a perfect gear mesh every time. The fixed positioning also keeps the gear mesh tight, even after the harshest impacts.
A sensorless Velineon 3500 Kv motor delivers extreme performance with nearly zero maintenance. Ultra high-temperature neodymium magnets, high-speed bearings, and a precision, 4-pole balanced rotor deliver smooth running and long life.
Mini Rally VXL’s high-tech modular chassis features front and rear bulkheads that remove easily with just a few screws. In less than a minute using a power screwdriver, you’ll have full access for easy service and adjustment.
A deep battery compartment shields the battery from impacts inside the reinforced chassis. A swivel clip hold-down firmly secures the battery in place for fast and easy battery swaps.
The waterproof Velineon VXL-3s speed control is packed with technology to deliver maximum power. A large heat sink with dedicated fan, integrated on/off switch, and three programmable drive profiles top the feature list. Two-stage low voltage detection allows full LiPo compatibility, including powerful 11.1-volt 3s packs!
Your RC experience should be filled with fun and adventure, not limited by the electronics. Traxxas’ patented waterproof technology gives you the freedom live out your wildest adventures, regardless of the weather.
In the event of signal loss due to an accidental transmitter switch-off or depleted batteries, the receiver automatically returns the throttle to neutral and holds the last commanded steering position. The fail-safe programming is conveniently built-in and does not need to be activated.
Mini Rally VXL’s full-size 2075X metal-gear steering servo uses dual bellcranks for zero bump steer geometry and high-speed steering precision. Oversize components and double-shear connections make Mini Rally VXL unbelievably tough with a cam operated servo saver for added protection against impacts.
Mini Rally VXL uses narrow suspension arms for a true-to-scale footprint and realistic rally car handling. The double-wishbone design maintains proper suspension geometry throughout the entire range of travel. Their double-shear connections and beefy construction maximize strength and durability.
Hex-drive hardware provides a more positive and secure connection than other fasteners. The black-oxide coating provides a rust resistant high-tech look and feel.
Mini Rally VXL punches well above its size class with heavy-duty suspension components engineered for maximum strength and durability. Modeled after the full-size Maxx, the caster blocks, steering blocks, and axle carriers feature incredibly robust construction, double-shear connections, and extra reinforcing where it’s needed.
Mini Rally VXL utilizes large, sealed bearings throughout the driveline to keep out grime and grit. Less downtime for cleaning and maintaining bearings means more run time—and more fun!
Mini Rally VXL is engineered for Velineon 3s power right from the start with huge 32-pitch pinion and spur gears. Normally found in much larger 4X4 vehicles, 32-pitch gears deliver total reliability no matter how much brushless power you pour on.
Mini Rally VXL's sealed center differential absorbs driveline shocks to improve driveline durability and allow performance tuning. The sealed differential comes pre-loaded with thick silicone oil to help prevent unloading of the front tires for rock-steady power delivery.
Mini Rally VXL’s driveshafts are 50% larger than standard 1/16 scale driveshafts for hard launches with big 3s Velineon brushless horsepower. The oversized telescoping half shafts allow the WideMaxx suspension arms to articulate fully without binding to keep constant power flowing to the wheels.
Mini Rally VXL’s differentials are nearly twice the size of standard 1/16 scale differentials for bombproof durability. The sealed design allows you to tune the amount of locking action by varying the viscosity of the fluid inside the differentials.
| Name: | Mini Rally VXL Ford RS200 |
|---|---|
| Type: | Rally car |
| Top Speed: | 40+ mph with included 2-cell LiPo. 55+ mph with optional 3-cell LiPo (sold separately) |
| Skill Level: | 1 |
| Scale: | Mini |
| Length: | 16.38 inches (416 mm) |
| Width: | 8.78 inches (223 mm) |
| Height: | 5.71 inches (145 mm) |
| Weight: | 4.04 pounds (1.83 kg) |
| Track: | 7.20 inches (183 mm) |
| Wheelbase: | 10.32 inches (262 mm) |
| Ground Clearance: | 0.83 inches (21 mm) |
| Driveline: | Shaft-driven all-wheel drive |
| Transmission: | Direct drive, center differential |
| Differential Type: | Planetary, steel gear |
| Gear Pitch: | 32 |
| Steering Servo: | 2075X |
| Radio System: | TQi 2.4 GHz (2-channel) |
| Battery Compartment Specs: | 113 mm L x 41 mm W x 22 mm H |
| Name: | Velineon® 3500 |
|---|---|
| Type: | Sensorless brushless |
| Weight: | 9.24 ounces (262 g) |
| Length: | 3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length |
| Diameter: | 1.41 inches (36 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | 3.5 mm bullet |
| Name: | VXL-3s electronic speed control |
|---|---|
| Type: | Brushless |
| Case Size: | 1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm) |
| Weight: | 3.17 ounces (90 g) |
| Motor Connectors: | 3.5 mm bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| Power Wire: | 12 gauge Maxx Cable |
Alternative product SKU's: TRX1080461, TRX 1080461, TRA 1080461, TRX10804-61, TRX 10804-61, TRA10804-61, TRA 10804-61, 10804-61
