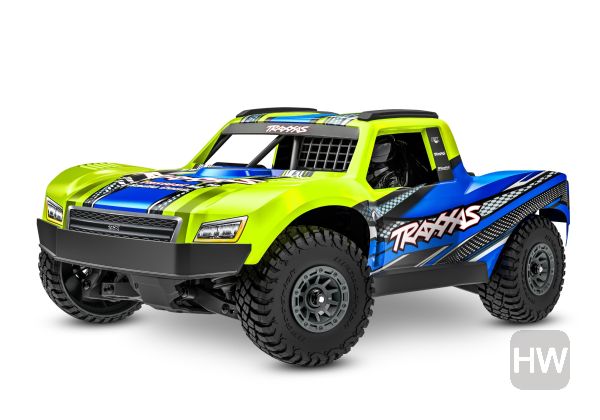

Mini Slash® 4X4 takes all the intense fender-to-fender racing fun of a 1/10 scale short course truck and infuses it with unrivaled power and extreme durability in the perfect size. Mini Slash 4X4's overbuilt drivetrain puts BL-2s Brushless power to the ground off-road in the dirt or flat out at 30+ mph on concrete and asphalt. Mini Slash 4X4 is a take-anywhere powerhouse that slips easily into a backpack and delivers all-day speed and fun in just about any environment.
Mini Slash 4X4 features a full interior with driver figure and replica netting for authentic scale looks. The molded interior incorporates special channels to direct fresh air from the cabin onto the motor and speed control to keep temperatures in check when you’re hammering the throttle.
Mini Slash 4X4 comes fully equipped with a 3500 mAh 2-cell LiPo battery optimized for maximum punch and long run times in a compact size. The included 2-amp USB-C LiPo balance charger provides quick and reliable charging with Traxxas iD® safety and simplicity.
Mini Slash 4X4's chassis tightly integrates beefy skid plates, high-strength bulkheads, triangulated shock towers, and massive bumpers to absorb and dissipate impact energy without breakage or damaging flex. It also allows quick access to critical components for easy maintenance and repairs.
A shaft driven 4-wheel-drive system is rugged simplicity at its finest, delivering solid power and unstoppable traction to all four corners. With driveshafts and differentials originally designed for Traxxas’ toughest 1/10 scale trucks, there’s nothing Mini Slash 4X4 can’t handle.
Mini Slash 4X4 uses same 2056 servo found in full-size 1/10 scale Traxxas trucks. With that much torque on hand, Mini Slash 4X4 powers through grass, sand, and mud without missing a beat. Need even more power? Mini Slash 4X4 accepts most standard size servo upgrades.
The TQ™ 2.4 GHz radio system keeps the focus on having fun, not worrying about interference from other vehicles. The TQ radio’s advanced programming provides long-range control with smooth, glitch-free performance and its ergonomic design is comfortable for all-day driving.
Mini Slash 4X4 carries on the Maxx Slash tradition of extreme power with the 1/10 scale BL-2s Brushless Power System on board. Lightning-quick acceleration and 30+ mph speed are at your fingertips for hours of non-stop fun.
Traxxas designed Mini Slash 4X4 to deliver the same go-anywhere driving freedom as other Maxx trucks. Reliable waterproof construction extends your playground into water, snow, and mud for unlimited fun, regardless of the weather.
Take Mini Slash 4X4 to the next level with the optional high-output off-road LED light kit (part 10886, sold separately). The light kit includes a forward-facing LED light bar with white lights and red LED lights in the rear. A regulated 3-volt power supply provides consistent, flicker-free performance from beginning to end.
MODEL MODEL 108164-1: Mini Slash 4X4: 4WD short course truck, fully assembled, Ready-To-Race®, with TQ™ 2.4 GHz radio system, BL-2s™ brushless power system, and clipless painted body. Includes 2-cell LiPo battery and 2-amp USB-C charger.
AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
Charging Accessories: Power adapter 2912 and power cable 2916 recommended for peak charging performance
30+ mph Top Speed
BL-2s™ Waterproof Electronic Speed Control
BL-2s™ Brushless Motor
Battery and Charger Included
TQ™ 2.4 GHz Transmitter
Clipless Body
1/10 Scale 4X4 Driveline
New Extended Mini Chassis
Easy Battery Access
Steering
Suspension
Oil-Filled Ultra Shocks™
Bumpers and Skid Plates
Wheels and Tires
Hex Hardware with Rust-Resistant Black Oxide Coating
Sealed Ball Bearings
Mini Slash 4X4 combines the best Slash qualities: strength, speed, and durability to create a unique short course truck experience. The result is a compact powerhouse with 30+ mph, track-focused handling, and zero compromises. Experience short course performance in a whole new way with Mini Slash 4X4.
The BL-2s Brushless Power System is already proven to deliver extreme power and wheel-standing torque in Traxxas 1/10 scale vehicles. Installed in Mini Slash 4X4, BL-2s power delivers lightning-quick acceleration and 30+ mph speed.
Mini Slash 4X4 is engineered to a higher standard with 1/10 scale 4WD driveline components. Large steel- gear differentials, beefy 32-pitch gears, and heavy-duty U-joint driveshafts far exceed requirements for strength and long life.
Mini Slash 4X4 builds upon the radical strength of Mini Maxx’s ultra-rigid, unified chassis and extends the wheelbase to 235 mm. The added 15 mm of chassis length provides a longer, more stable footprint, better high-speed stability, and a true-to-scale driving experience.
Mini Slash 4X4's clipless short course body is rock solid and easy to use. Just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the nerf bars and lift to access the chassis in just seconds. Nothing else is faster or more secure.
Mini Slash 4X4 wears all-new replica BFGoodrich® Mud-Terrain™ TA® KM3 tires for exceptional multi-terrain traction. Internal reinforcing ribs replace conventional tire foams for more consistent and longer lasting tread support. A new tire compound perfectly balances grip with wear resistance for optimal traction on most surfaces.
BFGoodrich® Mud Terrain™ T/A® KM3 are molded in a new rubber compound that perfectly balances grip with wear resistance. Internal reinforcing ribs eliminate conventional tire foams that can absorb water and upset tire balance.
Banging fenders is just part of racing so Mini Slash 4X4 comes equipped with tough nerf bars to protect the chassis from side impacts at the track or in the backyard. The nerf bars also incorporate rugged body mounts and lower body protectors to lock everything firmly in place.
Mini Slash 4X4’s reinforced inner cage attaches to the roof with tough roof skids. The rugged skids keep the body looking fresh in case of rollovers and distribute impact forces over a wide area to prevent pull-through damage.
Rugged impact-absorbing bumpers protect the chassis in the front and rear. An extra-wide front bumper conforms to the body to provide full frontal protection with a high approach angle to clear obstacles with ease. The rear bumper also accommodates the optional wheelie bar.
Mini Slash 4X4's oil-filled Ultra Shocks feature the same technology and construction of Traxxas’ 1/10 scale shocks for smooth, consistent damping. The Ultra Shocks’ large oil capacity and rugged design soak up big jumps and off-road abuse for precision handling and performance.
A fixed gear mesh system takes the guesswork out of setting your gear mesh with multiple preset gearing positions. Insert the motor screw through the desired gearing position for a perfect gear mesh every time. The fixed positioning also keeps the gear mesh tight, even after the harshest impacts.
The modular chassis features front and rear bulkheads that remove easily with just a few screws. In less than a minute using a power screwdriver, you’ll have full access for easy service and adjustment.
The waterproof BL-2s electronic speed control packs powerful features like three separate drive profiles, low-voltage detection for LiPo batteries, patented Training Mode™, and Thermal-Shutdown Protection to prevent overheating. The sensorless BL-2s 3300 Kv motor with integrated cooling fan delivers strong brushless performance with nearly zero maintenance.
A deep battery compartment shields the battery from impacts inside the reinforced chassis. The modular hold down features a removeable spacer for tall batteries and firmly secures them in place for fast and easy battery swaps.
Your RC experience should be filled with fun and adventure, not limited by the electronics. Traxxas’ patented waterproof technology gives you the freedom live out your wildest adventures, regardless of the weather.
In the event of signal loss due to an accidental transmitter switch-off or depleted batteries, the receiver automatically returns the throttle to neutral and holds the last commanded steering position. The fail-safe programming is conveniently built-in and does not need to be activated.
Mini Slash 4X4’s full-size 2056 steering servo uses dual bellcranks for zero bump steer geometry and smooth turning action in the harshest conditions. Oversize components and double-shear connections make Mini Slash unbelievably tough. A heavy-duty, cam-operated servo saver guarantees precise steering response with added protection against impacts.
Double wishbone suspension arms maintain proper suspension geometry throughout the entire range of travel. They’re modeled after Maxx Slash with double-shear connections and extra material in critical areas for maximum strength and durability.
Hex-drive hardware provides a more positive and secure connection than other fasteners. The black-oxide coating provides a rust resistant high-tech look and feel.
Mini Slash 4X4’s beefy suspension components are engineered for heavy-duty strength that punches well above its size class. Modeled after the full-size Maxx Slash, the caster blocks, steering blocks, and axle carriers feature incredibly robust construction, double-shear connections, and extra reinforcing where it’s needed most.
Tough interlocking skid plates fit tightly into the Mini Slash 4X4 chassis to create a smooth snag-free undertray. The skid plates save wear and tear on the chassis and they’re easy to replace.
Large, sealed bearings are utilized throughout the Mini Slash 4X4 driveline to keep out the grime and grit. Less downtime for cleaning and maintaining bearings means more run time—and more fun.
Stripped gears mean a trip to the workbench, but Mini Slash 4X4 eliminates this problem with huge 32-pitch gears. Normally found in much larger 4X4 vehicles, 32-pitch gears deliver total reliability no matter how much power you pour on.
Mini Slash 4X4 relies on a direct-drive transmission for instant throttle response and maximum power delivery. Huge 32-pitch gears and a fixed gear mesh make it possible for Mini Slash 4X4 to run this ultra-responsive setup. For greater tuning control, use the optional center differential (sold separately) in place of the standard spur gear.
Fortified for hard launches and big brushless horsepower, the driveshafts used in Mini Slash 4X4 are 50% larger than standard 1/16 scale driveshafts. The oversized half shafts are built to handle brushless power and offer huge articulation and suspension travel.
Mini Slash 4X4’s differentials are nearly twice the size of standard 1/16 scale differentials for bombproof durability. Silicone gaskets and X-ring seals allow you to tune the amount of locking action by varying the viscosity of the fluid inside the differentials.
| Model Name: | Mini Slash 4X4 |
|---|---|
| Model Type: | Short course truck |
| Top Speed: | 30+ |
| Skill Level: | 1 |
| Scale: | Mini |

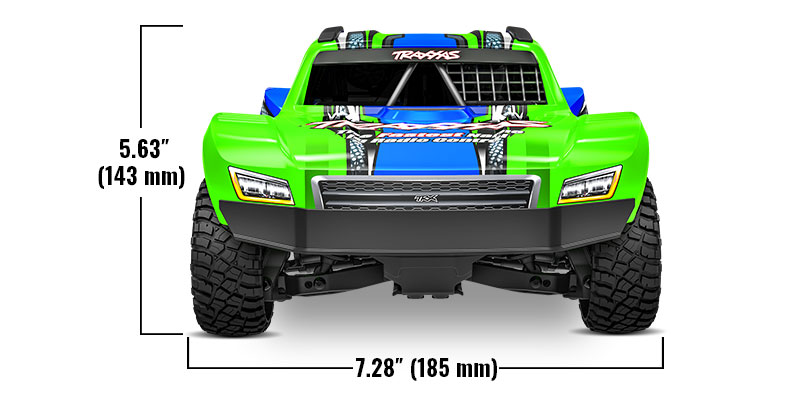

| Length: | 16.06 inches (408 mm) |
| Width: | 8.46 inches (215 mm) |
| Height: | 5.63 inches (143 mm) |
| Weight: | 3.62 pounds (1.64 kg) |
| Track: | 7.28 inches (185 mm) |
| Wheelbase: | 9.25 inches (235 mm) |
| Ground Clearance: | 1.06 inches (27 mm) |
| Drivetrain: | Shaft-driven 4WD |
| Transmission: | Direct drive |
| Differential Type: | Planetary, steel gear |
| Gear Pitch: | 32 |
| Servo: | 2056 |
| Radio System: | TQ 2.4 GHz (2-channel) |
| Battery Compartment Specs: | 113 mm L x 41 mm W x 22 mm H |

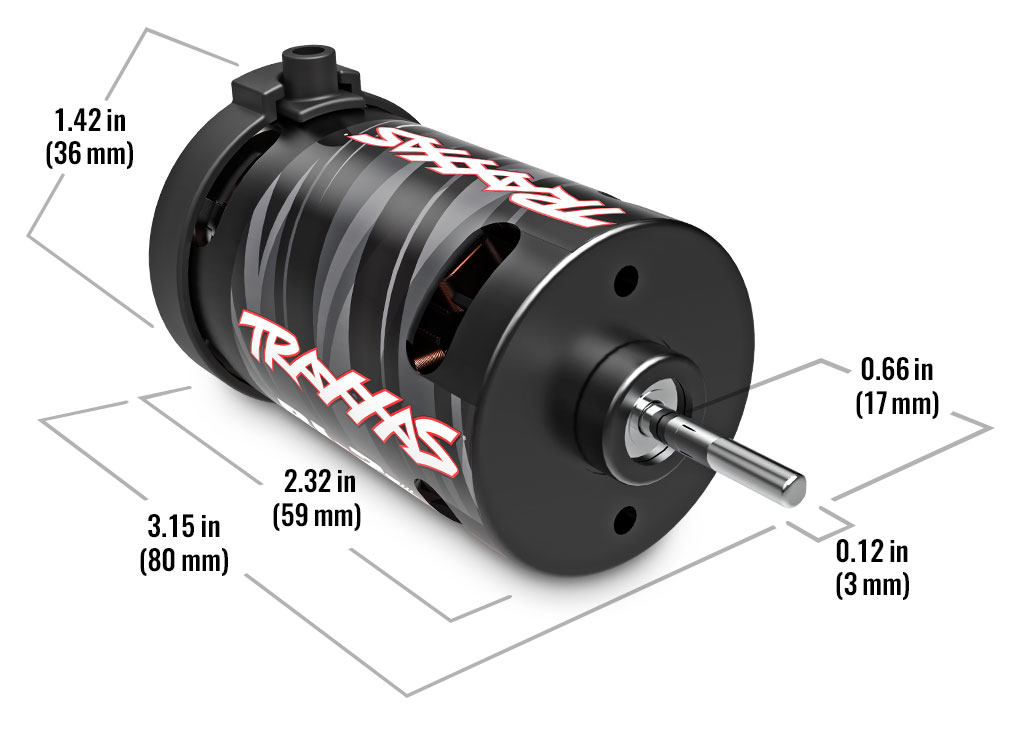

| Motor Name: | BL-2s 3300 Kv |
|---|---|
| Motor Type: | Sensorless brushless |
| Motor Weight: | 7.51 ounces (213 g) |
| Motor Length: | 3.15 inches (80 mm) |
| Motor Diameter: | 1.42 inches (36 mm) |
| Motor Shaft Size: | 3 mm |
| Motor Connector Type: | Traxxas Quick Connect Motor Plug |

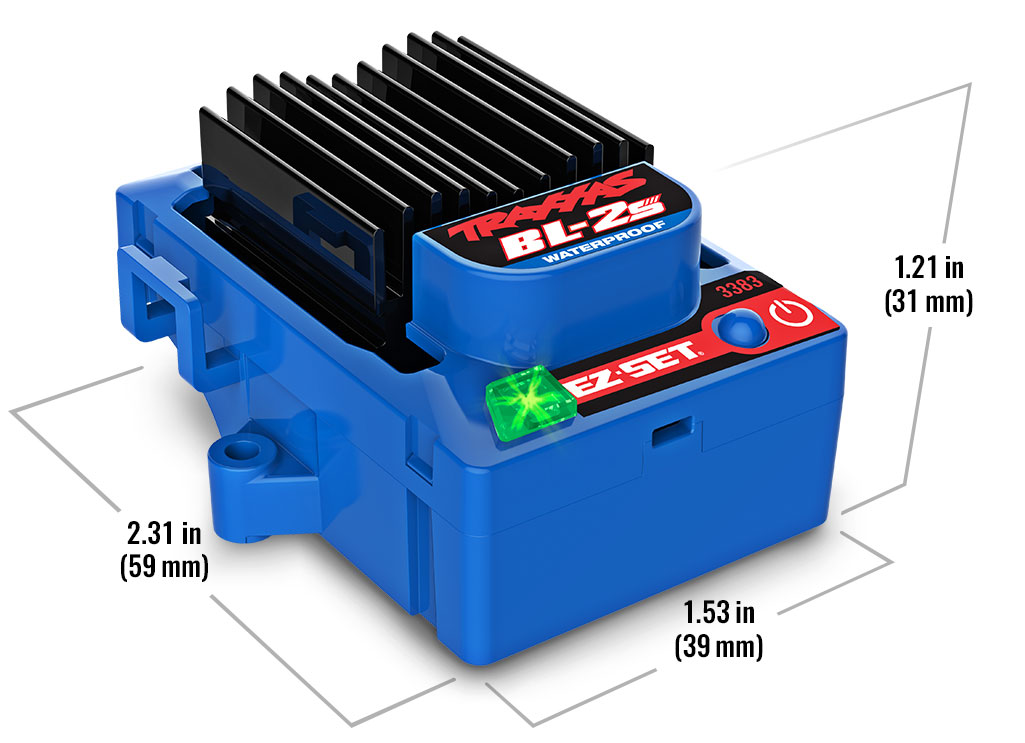

| ESC Name: | BL-2s Electronic Speed Control |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) |
| ESC Weight: | 3.07 ounces (87 g) |
| BEC Voltage: | 6 volts |
| Thermal Protection: | Two-stage thermal shutdown |
| Ports: | Auxiliary fan |
| Battery Connector: | Traxxas High-Current Connector |
