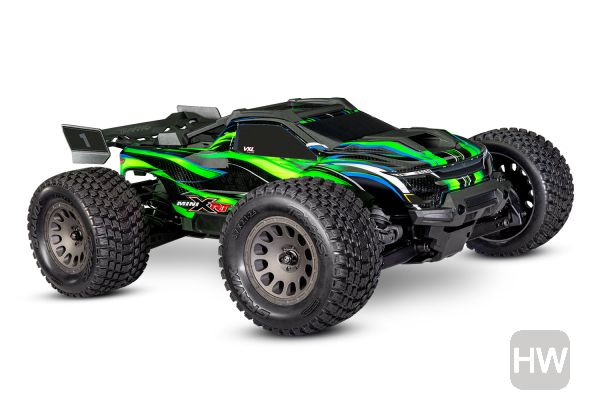

Mini XRT® is a true rocket with full 1/10 scale Velineon® 3s brushless power in a compact, take-anywhere size. Mini XRT lives up to its name with unprecedented 55+ mph speed and ferocious acceleration, backed by race-inspired engineering and unrivaled toughness. Mini XRT shatters all expectations with big-scale performance and toughness that fits in a backpack.INCLUDES LIPO
Mini XRT includes a 3500 mAh 2-cell LiPo battery for strong punch, long run times, and 40+ mph speed. The included 2-amp USB-C LiPo balance charger provides quick and reliable charging with Traxxas iD® safety and simplicity. Step up to 3s power (battery 2824X, sold separately) to unleash 55 mph speed with no gearing change required.
Mini XRT’s chassis tightly integrates beefy skid plates, high-strength bulkheads, triangulated shock towers, and reinforced bumpers to absorb and dissipate impact energy without breakage or damaging flex. It also allows quick access to critical components for easy maintenance and repairs.
Mini XRT’s shaft-driven 4X4 driveline is as rugged as it is efficient. With driveshafts and differentials originally designed for Traxxas’ toughest 1/10 scale trucks, Mini XRT delivers 3s brushless power and unstoppable traction to all four corners. A center differential absorbs driveline shocks and allows fine tuning for different surfaces.
Mini XRT uses the same high-performance 2075X metal-gear servo found in full-size 1/10 scale Traxxas trucks. The 2075X delivers digital precision and metal-gear durability along with 125 oz-in of tire-wrenching torque. With so much power on hand, Mini XRT muscles through the thickest grass, sand, and mud without missing a beat.
New 3.7″ versions of XRT’s revolutionary Gravix® tires put maximum power to the ground for breathtaking acceleration and razor-sharp reflexes on any terrain. Their directional tread pattern runs quieter than typical off-road tires with a thick center carcass to limit ballooning at high speed.
The high-output Traxxas TQi™ 2.4 GHz radio system delivers superior range, 30-model memory, and the precise control required for a high-speed machine. Add sensors and the Traxxas Link Wireless Module, (both sold separately) to send real-time telemetry to your smart phone using the free Traxxas Link™ app.
With so much hard-hitting power on tap, even the best drivers sometimes need a helping hand. Traxxas Stability Management® (TSM) is there when you need it to help harness Mini XRT’s brutal 3s power for all-out acceleration and control. TSM lets you adjust the amount of assistance from off to 100% right from your transmitter.
The Velineon VXL-3s brushless power system is the heart of Traxxas’ fastest and most powerful 1/10 scale vehicles. For the first time ever, this extreme 11.1-volt powerplant now comes installed in a compact platform. The result is astonishing acceleration, 55+ mph speed, and wheel-standing power at any rpm.
Traxxas, the innovator and leader in waterproof solutions, designed Mini XRT to deliver the same go-anywhere driving freedom as its full-size counterpart. Reliable waterproof construction extends your playground into water, snow, and mud for unlimited fun, regardless of the weather.
Mini XRT’s innovative clipless body is rock solid and easy to use. Just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift to access the chassis. Nothing else is faster or latches more securely.
Take Mini XRT to the next level with the optional high-output off-road LED light kit (part 10785, sold separately). The light kit includes new bumpers with LED lights and a new roof skid plate with white LED lights in the front and red in the rear. A regulated 3-volt power supply provides consistent, flicker-free performance from beginning to end.
MODEL 108076-1 Mini XRT: Maxx-scale monster truck, fully assembled, Ready-To-Race®, with TQi 2.4 GHz radio system, Velineon VXL-3s brushless power system, and clipless painted body. Includes 2-cell LiPo battery and 2-amp USB-C charger.
40+ mph with included 2-cell LiPo Battery. 55+ mph with optional 3-Cell LiPo Battery (sold separately)
Clipless Body Mount System
VXL-3s Waterproof Electronic Speed Control
Velineon 3500 Kv Brushless Motor
Battery and Charger Included
TQi 2.4 GHz High Output 2-Channel Radio System
Traxxas Stability Management (TSM)
1/10 Scale 4X4 Drivetrain
Modular Composite Chassis
Easy Battery Access
Steering
Suspension
Oil-Filled Ultra Shocks™
Bumpers and Skid Plates
Wheels and Tires
Hex Hardware with Rust-Resistant Black Oxide Coating
Sealed Ball Bearings
Like its X-series™ counterpart, Mini XRT was engineered with maximum focus on speed, handling, and performance. A low, ultra-wide stance delivers supreme confidence and control as Mini XRT muscles its way to 55 mph and beyond. It’s a whole new way to experience big-scale fun and toughness in a backpack-friendly size.
The Velineon VXL-3s brushless power system is the heart of Traxxas’ fastest and most powerful 1/10 scale vehicles. For the first time ever, this extreme 11.1-volt powerplant now comes installed in a compact platform. The result is astonishing acceleration, 55+ mph speed, and wheel-standing power at any rpm.
Adding 3s Velineon power to a compact platform requires bold engineering. Mini XRT comes outfitted with the proven driveline components of Traxxas’ toughest 1/10 scale 4X4 trucks. Front, center, and rear steel-gear differentials, along with 32-pitch gearing and HD driveshafts, far exceed requirements for strength and long life.
Mini XRT is the newest truck to use the revolutionary chassis design pioneered in Mini Maxx®. Perfectly sized to fit into a backpack, Mini XRT transforms full-scale performance and durability into a supremely compact chassis. Just one look at the rigid, unified structure and you know it’s built Maxx tough.
Mini XRT’s innovative clipless body is rock solid and easy to use. Just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift to access the chassis. Nothing else is faster or latches more securely.
Mini XRT relies on proven WideMaxx® suspension design to deliver sure-footed grip and laser-focused handling. Mini XRT sits low and wide for hard cornering and maximum stability at speed. The long-travel suspension delivers refined damping control to maintain composure over the roughest terrain.
Gravix tires are an evolutionary hybrid design with densely packed biting edges and sipes. They deliver outstanding grip on hard-packed surfaces along with fast and quiet-running precision. New 2.6″ dual-profile graphite gray wheels provide extra clearance for the suspension components and give Mini XRT a tough, menacing appearance.
The functional rear wing reduces drag while still providing valuable downforce for high-speed stability. The wing mounts directly to the frame for maximum strength and long-lasting durability.
A wheelie bar is mandatory equipment on a vehicle with the power and speed of Mini XRT. The reinforced wheelie bar protects the wing and body during 100-foot wheelies and also makes a convenient carry handle.
Tough nerf bars protect the chassis from side impacts and provide additional side support to hold the body firmly in place.
Clipless body latches are neatly integrated into Mini XRT’s molded body reinforcements that look great and protect the body. Unlike traditional posts and clips, body reinforcements spread impact forces over a wide area to minimize the risk of pull-through damage.
A rugged, impact-absorbing front bumper helps to protect the chassis from frontal impacts. The high approach angle design integrates neatly with front skid plate to allow Mini XRT to fly up and over obstacles with ease.
Mini XRT uses the same full-size oil-filled Ultra Shocks found on Traxxas’ 1/10 scale monster trucks for truly bottomless suspension travel. The Ultra Shocks’ large oil capacity and rugged design soaks up big jumps and off-road abuse for smooth driving performance. They are easy to tune with a wide range of available oils, springs, and pistons.
Mini XRT’s high-tech modular chassis features front and rear bulkheads that remove easily with just a few screws. In less than a minute using a power screwdriver, you’ll have full access for easy service and adjustment.
A fixed gear mesh system takes the guesswork out of setting your gear mesh with multiple preset gearing positions. Insert the motor screw through the desired gearing position for a perfect gear mesh every time. The fixed positioning also keeps the gear mesh tight, even after the harshest impacts.
A sensorless Velineon 3500 Kv motor delivers extreme performance with nearly zero maintenance. Ultra high-temperature neodymium magnets, high-speed bearings, and a precision, 4-pole balanced rotor deliver smooth running and long life.
The waterproof Velineon VXL-3s speed control is packed with technology to deliver maximum power. Large heat sink, integrated on/off switch, and three programmable drive profiles top the feature list. Two-stage low voltage detection allows full LiPo compatibility, including powerful 11.1-volt 3s packs!
A deep battery compartment shields the battery from impacts inside the reinforced chassis. A swivel clip hold-down firmly secures the battery in place for fast and easy battery swaps.
Your RC experience should be filled with fun and adventure, not limited by the electronics. Traxxas’ patented waterproof technology gives you the freedom live out your wildest adventures, regardless of the weather.
In the event of signal loss due to an accidental transmitter switch-off or depleted batteries, the receiver automatically returns the throttle to neutral and holds the last commanded steering position. The fail-safe programming is conveniently built-in and does not need to be activated.
Mini XRT's standard-size 2075X metal-gear steering servo uses dual bellcranks for zero bump steer geometry and high-speed steering precision. Oversize components and double-shear connections make Mini XRT unbelievably tough with a cam-style servo saver for added protection against impacts.
WideMaxx suspension arms add 20 mm extra width to the Mini XRT’s stance for improved stability and handling. The double-wishbone design maintains proper suspension geometry throughout the entire range of travel. The heavy-duty arms are molded in Traxxas' toughest composite material with double-shear connections for maximum impact resistance, even in cold weather.
Hex-drive hardware provides a more positive and secure connection than other fasteners. The black-oxide coating provides a rust resistant high-tech look and feel.
Anything that flies must come down eventually so Mini XRT uses tough skid plates to absorb hard landings and protect the chassis. The interlocking skid plates fit tightly together to form a smooth, snag-free undertray. They’re also quick and easy to replace as wear builds up so there’s no need to hold back.
Mini XRT punches well above its size class with heavy-duty suspension components engineered for maximum strength and durability. Modeled after the Maxx, the caster blocks, steering blocks, and axle carriers feature incredibly robust construction, double-shear connections, and extra reinforcing where it’s needed.
Mini XRT utilizes large, sealed bearings throughout the driveline to keep out grime and grit. Less downtime for cleaning and maintaining bearings means more run time—and more fun!
Mini XRT is engineered for Velineon 3s power right from the start with huge 32-pitch pinion and spur gears. Normally found in much larger 4X4 vehicles, 32-pitch gears deliver total reliability no matter how much brushless power you pour on.
Mini XRT's sealed center differential absorbs driveline shocks to improve driveline durability and allow performance tuning. The sealed differential comes pre-loaded with thick silicone oil to help prevent unloading of the front tires for rock-steady power delivery.
Mini XRT’s driveshafts are 50% larger than standard 1/16 scale driveshafts for hard launches with big 3s Velineon brushless horsepower. The oversized telescoping half shafts allow the WideMaxx suspension arms to articulate fully without binding to keep constant power flowing to the wheels.
Mini XRT’s differentials are nearly twice the size of standard 1/16 scale differentials for bombproof durability. The sealed design allows you to tune the amount of locking action by varying the viscosity of the fluid inside the differentials.
| Length: | 14.8 inches (376 mm) |
|---|---|
| Front Track: | 11 inches (279 mm) |
| Rear Track: | 11 inches (279 mm) |
| Ground Clearance: | 1.06 inches (27 mm) |
| Weight: | 3.99 pounds (1.81 kg) |
| Height: | 5 inches (127 mm) |
| Wheelbase: | 8.66 inches (220 mm) |
| Shock Length: | 3.45 inches (88 mm) |
| Tire Diameter: | 3.7 inches (94 mm) |
| Wheel Diameter: | 2.1″ (53 mm) outer, 2.6″ (66 mm) inner |
| Speed Control: | VXL-3s brushless ESC |
| Motor (electric): | Velineon 3500 (3500 Kv) |
| Transmission: | Direct-drive with center differential |
| Overall Drive Ratio: | 7.36:1 |
| Differential Type: | Planetary, steel gear |
| Gear Pitch: | 32 |
| Chassis Structure/Material: | Composite modular tub |
| Brake Type: | Electronic |
| Drive System: | Shaft-driven 4WD |
| Steering: | Double-shear bellcrank |
| Wheels & Tires: | Black dual-profile XRT wheels with pre-glued 4″ Gravix tires |
| Radio System: | TQi 2.4 GHz high output(2-channel) w/ TSM |
| Servo: | Waterproof high-torque, metal-gear 2075X |
| Top Speed: | 55+ mph |
| Skill Level: | 1 |
| Battery Tray: | 113 mm L x 41 mm W x 22 mm H |
| Required Batteries: | 4 “AA” (transmitter) |
| Type: | Velineon 3500 Kv sensorless brushless |
|---|---|
| Weight: | 9.24 ounces (262 g) |
| Length: | 3.03 inches (77 mm) |
| Diameter: | 1.41 inches (36 mm) |
| Connector Type: | 3.5 mm bullet |
| Input Voltage (cells): | 7.4 – 11.1 volts, 2s–3s LiPo |
|---|---|
| Case Size: | 2.19″ (56 mm) x 1.54″ (39 mm) x 1.3″ (33 mm) |
| Weight: | 3.84 ounces (109 g) |
| BEC Voltage: | 6.0 volts |
| Reverse Delay: | Yes, with lockout |
| Thermal Protection: | Two-stage thermal shutdown |
| Ports: | Auxiliary fan |
