The combination of the highly-detailed body and a completely new 4x4 chassis design opens up new levels of performance, well beyond anything RC enthusiasts have ever seen from a mini crawler.

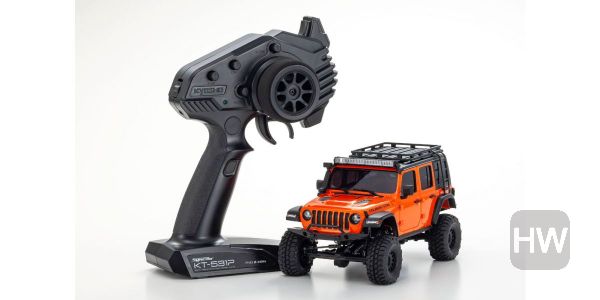

In the signature Jeep® Wrangler lineup, the Rubicon boasts the strongest off-road performance. With black over-fenders, front grille with dark grey accent, and the distinctive Jeep® round headlights, the formidable styling of the black hard top is immaculately reproduced in a model that rests on the palm of your hand.
The combination of the highly-detailed body and a completely new 4x4 chassis design opens up new levels of performance, well beyond anything RC enthusiasts have ever seen from a mini crawler. In the signature Jeep® Wrangler lineup, the Rubicon boasts the strongest off-road performance. With black over-fenders, front grille with dark grey accent, and the distinctive Jeep® round headlights, the formidable styling of the black hard top is immaculately reproduced in a model that rests on the palm of your hand.
New body includes scale side ladders and roof rack.
Black Over fenders, grille, light bar and snorkel enhance the scale appearance.
New Fat Interco Super Swamper "Bigger" LTB tires with new wheels give a more aggressive look.
The Mini-Z 4X4 uses a ladder frame design with steel vertical plates to deliver the ultimate balance of rigidity and flex for superior performance and durability.
Solid front and rear axles feature metal ring and pinion gear for durability and consistent performance.
Coil over shocks feature a 360 degree spring retainer that cannot be lost on the trail and keep the springs where they need to be while operating at the limits of the suspension.
The gearbox features molded covers, ball bearings, and 6 pinion gears that allow a full range of adjustment according to your chosen terrain. As with all Mini-Z models the gear mesh is easily set using the provided spacers.
A standard slipper clutch protects the drive system and features a metal shaft and primary gear for durability.
Length 202.0mm
Width 95.0mm(Both ends of the tire)
Height 96.0mm
Chassis Type MX-01
Wheel Base 120mm
Tread F/R:77.0mm
Weight 247.6g (excl. battery)
Motor/Engine 130 Class
Gear Ratio 55.44:1/46.20:1/39.60:1/34.65:1/30.80:1/27.72:1
Front Tire Diameter Φ40.5mm
Rear Tire Diameter Φ40.5mm
Front Tire Width 18.0mm
Rear Tire Width 18.0mm
Battery 4 x AAA Alkaline
Transmitter Syncro KT-531P
Speed：Approx. 2.7km/h〜5.4km/h (Pinion gears 10T〜 20T)
Running Time Approx. 60 mins
