A favorite at drift competitions, the S13 Nissan® 240SX combines light weight, rear-wheel drive, and almost perfect 50/50 weight distribution. Traxxas creates the ultimate RC drift car by adding an incredible replica Nissan 240SX body to the proven 4-Tec® Drift chassis. Outfitted with advanced TSM® Drift technology, 4-Tec Drift is easy to master and endless fun to drive with its smooth, predictable slides and high-tech chassis. Take your drifting experience to the next level with the Traxxas 4-Tec Drift.
MODEL 105247-4: 4-Tec Drift: 1/10 RWD drift car, fully-assembled, waterproof electronics, Ready-To-Race®, with TQi™ 2.4 GHz 3-channel radio with Wireless Module, Xl-5™ ESC, Titan® Drift 21T motor, and clipless Nissan® 240SX body. Requires: battery and charger.
Officially Licensed Nissan® 240SX Body
Clipless Body Mounts
High-Performance Waterproof XL-5™ Electronic Speed Control
Titan® Drift Motor
TQi™ 2.4 GHz Radio System with Wireless Module
Traxxas Stability Management (TSM)® with 3 Drift Modes
Steering
Low Center of Gravity (Low CG) Chassis
Adjustable Battery Hold Down
High Performance Suspension
Rear-Wheel-Drive Layout
Shocks & Springs
Wheels & Tires
Rubber-Sealed Ball Bearings
Precision Hex Hardware
4-Tec Drift delivers big sideways drifts and quick transitions thanks to its steering geometry and powerful TSM Drift Mode. TSM compares steering angle with driver input and seamlessly applies just enough assistance to maintain the desired drift. 4-Tec Drift also includes an optional high-angle steering kit to boost steering angle to 75° for drivers seeking maximum throw.
The included Traxxas Link™ Wireless Module harnesses the full potential of 4-Tec Drift’s powerful TSM drift modes. Use the full-color graphical interface to personalize the TQi™ radio and unlock its advanced tuning features. Tap the handbrake button on the side to initiate rotation and begin your drift.
4-Tec Drift raises the bar for durability, ease of use, and scale detail with its clipless Nissan 240SX body. Beautiful high gloss paint contrasts the molded body details for show-stopping looks and classic 80’s Nissan styling. Hidden body mounts under the hood and rear spoiler preserve the 240SX’s sleek lines while holding the body tightly to the chassis.
4-Tec Drift lets you choose between three customizable drift modes. Innovative TSM® Drift technology replaces old-fashioned drift gyros with smooth precise control that can be fine tuned with the Traxxas Link app. New drivers can drift like a pro without specialized knowledge or skills, and advanced enthusiasts will enjoy the refined controls and smooth performance.
4-Tec Drift delivers maximum versatility with two sets of 1.9" drift tires included in the box. Use the factory-installed hard compound tires on any hard abrasive surface like pavement or cement. The included soft compound tires provide refined drift control on polished surfaces.
4-Tec Drift rides on a rear-wheel-drive platform based on the responsive 200 mm 4-Tec chassis. The redesigned front bulkhead and suspension provide optimal drift geometry and over 60° steering angle. Drivers can take advantage of individual settings for caster, roll center, ackerman, track width, and more.
4-Tec Drift rolls out of the box ready for action with 1.9″ hard-compound drift tires installed. These tires are designed for street driving on abrasive surfaces like concrete and asphalt. A second set of soft-compound tires is included in the box for improved control on polished track surfaces.

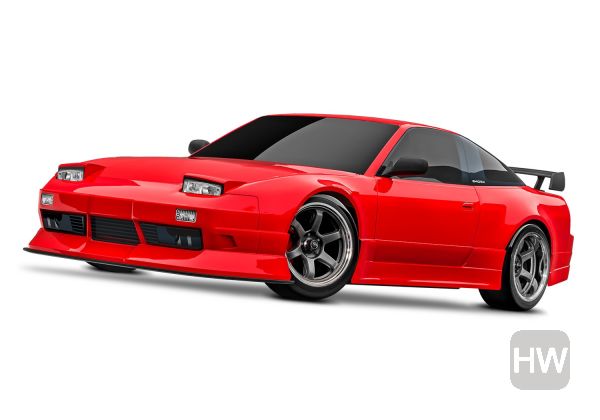

From the iconic pop-up headlights to the large rear spoiler, Traxxas combines 80’s styling and modern drift mods with this licensed S13 Nissan 240SX clipless body. The 240SX’s sleek stance is accentuated by wide tires riding on aggressive 6-spoke tuner wheels. Beautiful metallic paint contrasts the molded body details for show-stopping looks and timeless Nissan style.
Injection-Molded Details
The Nissan 240 SX body is superbly detailed with injection-molded side mirrors, lower grille, and splitter. The molded rear wing and grille not only look great, they also act as body reinforcements for the clipless mounting system to create a seamless look.
Stylish 6-spoke wheels feature a rubber inner liner with grooves to hold the tire securely in place. Tires swaps are quick and easy thanks to this innovative feature.
4-Tec Drift rides on oil-filled Ultra Shocks utilizing X-ring technology for a perfect seal and silky-smooth performance. They are fully tunable with a wide range of oils and pistons and feature spring clips to change the ride height and pre-load. New super soft springs are tuned to deliver maximum weight transfer for perfect drifts.
Adjustable steel turnbuckles allow easy camber tuning. The rear suspension features dual turnbuckle mounting points to accommodate different bodies.
4-Tec Drift's rear spool features 48-pitch gears with a 5° spiral cut to reduce backlash for smooth, quiet running.
4-Tec Drift eliminates the hassle of setting gear mesh with its innovative fixed positioning system. Use the convenient chart included in the user manual to select the proper hole for your pinion gear.
One-piece steel driveshafts save weight and send power directly to the wheels for lightning quick response times. Extended drive cups allow for maximum articulation and ultimate durability.
A simple wire clip would look out of place with this futuristic high-tech chassis. Traxxas engineers designed a trick molded wire retainer to keep wiring secured safely out of the way.
With 21 turns of pure copper wire, the Titan Drift motor delivers smooth, predictable power at any RPM to initiate a slide with the blip of the throttle. An internal fan routes cooling air through the can for longer run times and lower temperatures.
The XL-5 electronic speed control balances high power output with the precise control required for mid-corner adjustments. The XL-5 is completely waterproof with three drive modes, low voltage detection, thermal shutdown protection, and 2-cell LiPo compatibility.
4-Tec Drift's high-tech chassis keeps weight positioned as low as possible for a crisp, responsive feel. Three interlocking modules provide unprecedented rigidity and tight tolerances with a completely smooth undertray to eliminate snags. Not only is the chassis stiffer and more responsive, it’s also easy to disassemble.
In the event of signal loss due to an accidental transmitter switch-off or depleted batteries, the receiver automatically returns the throttle to neutral and holds the last commanded steering position. The fail-safe programming is conveniently built-in and does not need to be activated.
A quick-release, dual-height battery mount accommodates a wide range of batteries including long format NiMH and 2-cell LiPo battery packs.
A sealed receiver box gives you the freedom to practice your drifting skills regardless of the weather. The antenna and servo wires route neatly through a patented watertight seal. A blue O-ring seals the receiver box to protect the receiver from water.
A high-performance chassis needs a precise steering servo for responsive performance and Traxxas delivers with the digital 2075 servo. This waterproof steering servo uses O-ring seals to keep the fun going when things get wet. Waterproof for all-weather action, the 2075 servo provides 125 oz-in of steering muscle.
4-Tec Drift uses high-grade metric hex-drive hardware throughout for extra strength and easy maintenance. The black oxide rust-resistant finish provides a high-tech look and feel.
4-Tec Drift includes an optional High-Angle Steering Kit to increase the steering angle to 75° for drivers wanting a more aggressive steering angle. The kit and is quick and easy to install with the included instructions.
4-Tec Drift gives drivers complete customization to tune their vehicles for any driving style or track surface with a fully adjustable suspension. All-new front suspension arms adjust for width to increase the front track. The suspension also includes adjustments for caster, roll center, ackerman, droop, toe, and bump steer.
Rubber-sealed bearings offer the ultimate in super low-friction performance and maximum protection in dusty environments. They are used in all exposed locations on the truck and are virtually maintenance free.
Locking tabs hold the body tightly to the chassis with an audible snap to signal they’re secure. The self-energizing locking tabs stay locked until you release them. This hidden latching system maximizes convenience and scale realism by removing traditional body clips which would interrupt the body’s clean lines.
| Name: | 4-Tec Drift Nissan 240SX |
|---|---|
| Type: | On-Road Cars |
| Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 2.28 pounds (1.30 kg) |
| Length: | 18.38 inches (467 mm) |
| Width: | 8.50 inches (216 mm) |
| Front Track: | 7.87 inches (200 mm) |
| Rear Track: | 7.87 inches (200 mm) |
| Height: | 5.15 inches (131 mm) |
| Wheelbase: | 10.11 inches (257 mm) |
| Center Ground Clearance: | 0.5 inches (12 mm) |
| Driveline: | Rear-wheel drive |
| Differential Type: | Spool |
| Gear Pitch: | 48 pitch |
| Steering Servo: | 2075 digital high-torque waterproof |
| Radio System: | TQi™ 2.4 GHz 3-channel transmitter |
| Battery Compartment Specs: | 174 mm X 48 mm X 23 mm or 26 mm |
| Name: | Titan Drift 21T 550 |
|---|---|
| Type: | High-torque brushed motor |
| Weight: | 8.47 ounces (240 g) |
| Length: | 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Diameter: | 1.53 inches (39 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | Bullet |
| Name: | Waterproof XL-5 ESC with low-voltage detection |
|---|---|
| Type: | Brushed |
| Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm) |
| Weight: | 2.44 ounces (69 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High Current Connector |
| Power Wire: | 14 gauge |
