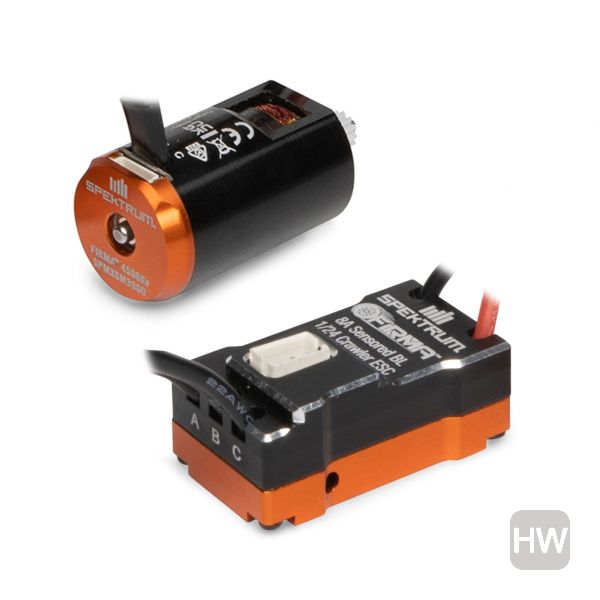

Firma 8A Sensored Brushless ESC / Motor Combo: 1/24 Rock Crawlers. The Spektrum Firma 1/24th Scale Sensored Brushless motor and ESC provides Axial SCX24 & AX24 enthusiast with a drop-in motor & ESC system to take their crawling to the next level.
The Spektrum™ Firma™ 1/24th Brushless ESC + Motor Combo is a great choice for micro crawlers and more running on 2S LiPo power. It features a high-precision magnetic encoder and rotor position sensor that provides excellent 1 to 1 control feel when driving at any speed and at any angle. Perfectly suited for trail driving and rock crawling competitions. This advancement in sensored motor control allows the ESC to match the throttle input to the motors RPM with unmatched precision. This combo is specifically designed for the Axial® SCX24 & AX24 platform to provide the ultimate performance for maximum power and realism. Preinstalled with 2mm bullet connectors for easy installation.
Includes
(1) 4500Kv Sensored Brushless Motor
(1) 8 Amp (40 Amp Burst) 1-2S Compatible ESC
(1) Firma SCX24/AX24 Brushless Sensored Combo Instruction Manual
Features
Reliable 4500Kv Sensored Brushless Motor with excellent slow speed control and smooth operation
Drop-in conversion to all Axial 1/24th Scale SCX24 & AX24 RTR vehicles.
*Note: Axial SCX24 vehicles equipped with HRZ00014 2-in1 Receiver and HRZ00015 transmitter requires an SLT3 Transmitter and receiver upgrade for functionality. Please refer to the manual for more information. (2021 Ford Bronco, Jeep GT Gladiator, and Jeep Wrangler will require this upgrade)
All included – includes motor, ESC, sensor wire and pinion gears
Crawler Mode: Forward and instant reverse with drag brake
8 Amp (40 Amp Burst) 1-2S Compatible ESC
Compact Size and Ready to Install
JST PH 2.0 connector to fit the Dynamite 7.4V 350mAh 2S Lipo Battery
DROP-IN UPGRADE FOR AXIAL SCX24 & AX24 VEHICLES
The Spektrum Firma 1/24th Scale Sensored Brushless motor and ESC provides Axial SCX24 & AX24 enthusiast with a drop-in motor & ESC system to take their crawling to the next level.
ALL-INCLUDED
System includes motor, ESC, sensor wire and pinion gears and is preinstalled with 2mm bullet connectors and JST PH 2.0 battery connector to fit the Dynamite 7.4V 350mAh Lipo battery included with the Axial SCX24 & AX24 vehicles.
This is a test
Custom Specification
Product Specifications
Maximum Burst Current
40A
Maximum Continuous Current
8A
Motor Type
Brushless Sensored
Connector Type
PH 2.0 (High-Current Ultra Micro)
ESC Type
Brushless Sensored
Product Length
1.05" (27 mm)
Forward
Yes
Reverse
Yes
Auto Cutoff
Yes
BEC Continous Current
0.3A
Low-Voltage Cutoff Programmable
No
Number of Poles
2
Output Connector
2mm Bullet
Overload Protection
Yes
Product Weight
10g ESC / 16g Motor
Water-Resistant
No
Outer Diameter
0.6" (15 mm)
Product Width
0.6" (15 mm)
Brakes
Integral with ESC
Programmable
No
BEC
Yes
BEC Voltage
5V
Input Voltage
1 - 2S LiPo
Product Height
0.46" (12 mm)
RPM/Volt (Kv)
4500
Sensored
Yes
Compatible Fits Tab
Note: This is not a comprehensive list of all compatible products and even though we try our best to keep this list accurate, compatibility is not guaranteed. Please consult the manual for your vehicle, the manufacturer of the product, or contact us here at Hobby Wholesale to confirm compatibility if you are unsure.
