RS GEN3 SPEC ESC/13.5T GEN4 SPEC-R Sensored BL Motor System. The RS GEN3 SPEC is designed for SPEC racing and offers professional performance at an affordable price.

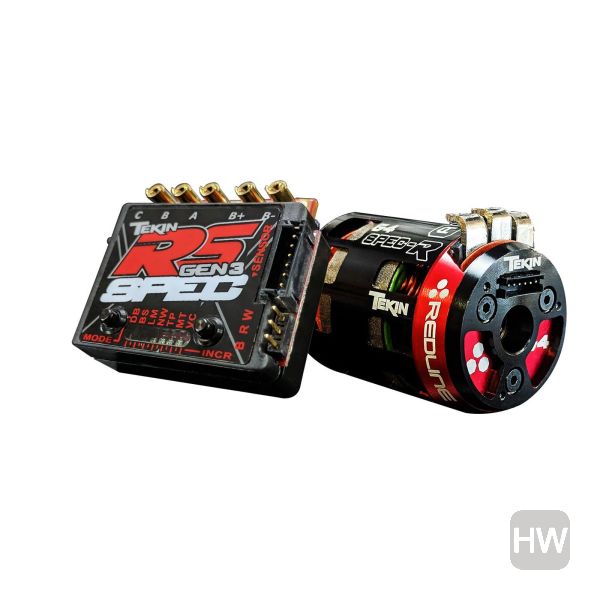

RS GEN3 SPEC ESC/13.5T GEN4 SPEC-R Sensored BL Motor System
ESC Overview
The RS GEN3 SPEC is designed for SPEC racing and offers professional performance at an affordable price. Packed with the latest hardware and HotWire programmable features like Data Logging, the RS SPEC gives you the tools and control you need to win. True ROAR SPEC mode with no timing or boost features with easily identifiable "blinky mode" LEDs. Rated for 13.5T and higher 540-size brushless motors, the RS SPEC is the ultimate in SPEC racing performance! Next generation components and new firmware make the new RS GEN3 SPEC our smoothest, best-driving SPEC ESC ever.
ESC Features
Bluetooth Wireless Mobile and USB PC Tuning with the HotWire 3.0
ROAR Spec Mode Only - NO TIMING FEATURES
New HD Solder Post Design
3rd Channel Input for On-The-Fly Drag Brake Adjustments
QuickTune™ One Touch Programming
Adjustable Torque Control *
Adjustable Throttle and Brake Frequencies *
High Voltage Programmable BEC *
HotWire™ Programming Port *
Data Logging Capability *
Sensor Checker
On-Board Temperature Indicator
ESC Self Diagnostics with Error Codes
Fully Proportional
Forward/Brake/Reverse
Brushless and Brushed Motor Drive
Sensored or Sensorless Operation
LiPo Safe with Custom Voltage Cutoffs
Sensor Plug for Precise Commutation
Lightweight Chassis Design
HDAC: High Density Copper PCB's
Ultra-smooth and Precise Throttle and Braking Control
ON BOARD QuickTune™ PROGRAMMABLE FEATURES
DB - Drag Brake (13 steps)
BS - Brake Strength (13 steps)
LM - Torque Limiter (7 steps)
NW - Neutral Width (13 steps)
TP - Timing Profiles 5 Preset - 2 Custom*
MT - Motor Type
Brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / FWD-REV Delay REV Motor Direction
Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay
VC - Voltage Cutoff : 2S, 3S, Custom*
* requires HotWire™ sold separately.
Motor Overview
Tekin’s SPEC-R brushless motors are engineered for award-winning performance. Utilizing the best materials available we redesigned the SPEC-R to cut weight while reducing resistance, resulting in a purebred Spec racing machine. On Road or Off, the SPEC-R handles all situations, providing smooth power and control across all RPMs when you need it. The SPEC-R is competition performance with the speed you need to win. Pair with an RS PRO Black Edition for the ultimate in SPEC Racing Equipment.
The GEN4 motor line is a completely new ground-up design. We put in the design and test time so you can reduce your lap times. The new stator is precision stamped and pressed, increasing efficiency and reducing resistance. Our motors are hand-wound with high purity copper wire and machined from 6061-T6 aluminum. Completely tunable with optional rotors and re-buildable, the new GEN4 SPEC-R motor is a premium performance power plant for the serious racer.
Motor Features
60 Degrees Adjustable Timing Advance
SPEC Racing Specific Design
CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
Neodymium Sintered Magnet
Precision Engineered for Maximum Energy Conversion
High Purity Copper Windings Maximize Conductivity
Low Resistance, High Power Solder Tabs
Sensored System Ready
Anodized End-bell Plates Maximize Corrosion and Wear Resistance
High RPM Precision Bearings
Oversized Front Bearing
Rebuild-able Design
Solder-less Sensor PCB Replacement
Legal in Major Race Governing Bodies
ROAR Approved
ESC Specifications
Controls: Forward/Brake/Reverse
Input Voltage: 2S LiPo / 4-7S NiMH-NiCD
Motor Limit Brushless Mode 2S: 13.5T 2-pole 36mm Can
