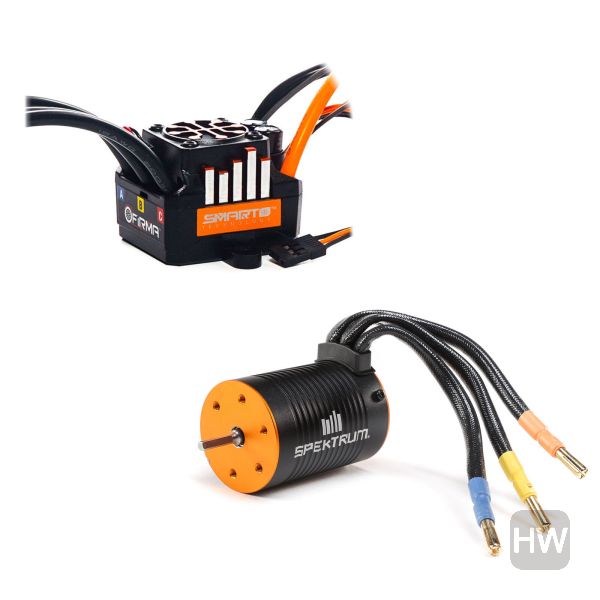

The Spektrum Firma Sensored Smart ESC System is specifically sourced to be used with 10th scale Drag and Speed Run models running 2S LiPo power. Featuring advanced Smart connectivity that reports valuable telemetry data without any extra accessories.
The Firma 6500Kv brushless motor features a large 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled 4mm gold plated bullet connectors.
Drop in and get started quickly and easily on most Drag kit and RTR models such as the Losi ™ 22S No Prep Drag Car Roller. And with the advantage of Spektrum Smart Technology, drivers can use the real-time telemetry data to better tune their setup for faster runs.
The all-weather, waterproof design of Spektrum™ Firma™ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.
No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including RPM, voltage, temperature, balance, capacity, and speed.* *See compatibility chart for more information.
When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery capacity used and remaining, individual cell voltage and more!
Multiple programming options are available. Using the Smart Firma™ ESC Programming Box, you can easily change settings on the trail to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available. And for those with a Text Gen capable, programming and adjustment of ESC settings can be performed, right from your Spektrum transmitter, no additional modules or wires needed!
With the latest models of Spektrum computer transmitters, drivers can take advantage of the Firma Prog text gen menu. This allows you to adjust any ESC setting or parameter right from your transmitter, on the trail, no programming box or Bluetooth interface required!
| Adjustable Timing | Yes |
| Amperage | 100A |
| Auto Cutoff | Yes |
| BEC | Yes |
| BEC Continous Current | 4A |
| BEC Voltage | 6V, 7.4V Selectable |
| Brakes | Integral with ESC |
| Connector Type | IC5 |
| Forward | Yes |
| Input Voltage | 2S-3S LiPo / 5-9 Cell NiMH |
| Low-Voltage Cutoff Programmable | Yes |
| Maximum Burst Current | 650A |
| Maximum Continuous Current | 100A |
| Motor Type | Brushless |
| Outer Diameter | 1.41" (36 mm) |
| Output Connector | 4mm Bullet |
| Overload Protection | Yes |
| Product Height | 1.33" (34 mm) |
| Product Length | 1.7" (43 mm) |
| Product Weight | 4.9oz (136g) |
| Product Width | 1.53" (39 mm) |
| Programmable | Yes |
| Reverse | Yes |
| RPM/Volt (Kv) | 6500Kv |
| Sensored | No |
| Speed Control | Included |
| Technology | Smart |
| Water-Resistant | Yes |
