Designed for the Losi Mini-T, Mini-B, Mini Drag, and Mini JRX2*

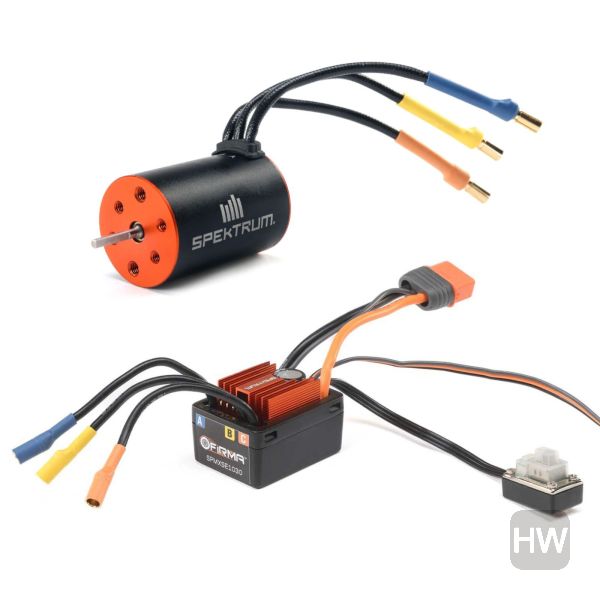

Feature-packed Spektrum™ Firma™ Smart ESCs deliver power and intelligence all-in-one, with no additional modules or links required. This waterproof, 30A brushless marine ESC drives your mini through almost any condition imaginable, with explosive acceleration and ultra-smooth performance — while feeding real-time telemetry straight to your Spektrum™ transmitter! The 4500Kv Motor offers impressive torque, speed, and excellent efficiency.
The Smart data wire on the innovative IC3™ connector replaces sensors, sending telemetry information to the transmitter directly from the Firma™ Smart ESC.
*Please note: A compatible battery adapter and/or battery connector may be required (sold separately).
| Amperage | 30A |
| Application | 1/16 to 1/18th scale mini sized vehicles |
| BEC | Yes |
| BEC Continous Current | 3A |
| BEC Type | Linear |
| BEC Voltage | 6V / 7.4V |
| Brakes | Yes |
| Bushing Or Bearing | Bearing |
| Connector Type | IC3 |
| ESC Type | Brushless |
| Forward | Yes |
| Input Voltage | 2S - 3S LiPo | 5C - 9C NiMH |
| Low-Voltage Cutoff Programmable | Yes |
| Maximum Burst Current | 100A |
| Maximum Continuous Current | 30A |
| Motor Output Lead | 3.5mm Bullet |
| Motor Type | Brushless |
| Number of Poles | 4 |
| Output Connector | 3.5mm Bullet |
| Overload Protection | Yes |
| Programmable | Yes |
| Reverse | Yes |
| RPM/Volt (Kv) | 4500Kv |
| Sensored | No |
| Shaft Diameter | 0.08" (2 mm) |
| Shaft Length | 0.47" (12 mm) |
| Speed Control | Included |
| Technology | Smart |
Note: This is not a comprehensive list of all compatible products and even though we try our best to keep this list accurate, compatibility is not guaranteed. Please consult the manual for your vehicle, the manufacturer of the product, or contact us here at Hobby Wholesale to confirm compatibility if you are unsure.
