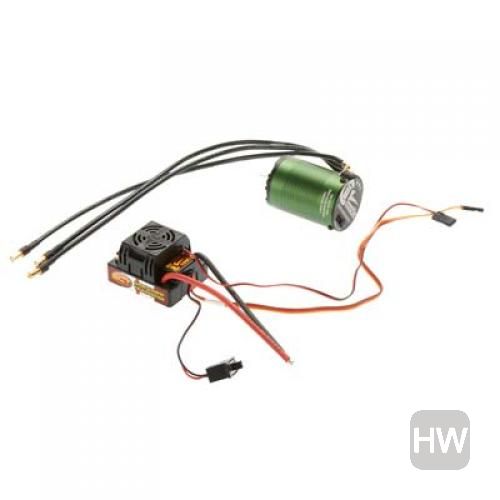

This is the Castle 1410 1Y 3800Kv 4-Pole Sensored Brushless Motor
with 1/8" (3.17mm) Diameter Shaft
and the Sidewinder SCT Edition Waterproof* Electronic Speed Control.
**Sensored capabilities of this motor cannot be utlized with the**
**Sidewinder SCT.**
**If sensored operation is required,**
**a sensored ESC like the Castle Mamba X must be used.**
3800Kv 4-Pole Sensored Brushless Motor
Ideal for 1/10 scale 2WD and 4WD short course trucks up to 6.5lbs
using a 2S LiPo, and 1/10 scale buggies and stadium trucks up to
4lbs using a 2-3S LiPo
High-strength 180°C grade neodymium sintered magnets with high-
strength wrap
High-temperature, high purity copper windings
High-performance 0.2mm steel lamination stacked stator
Vibration dampening wave spring on shaft
Rotor position sensor eliminates cogging and inconsistency during
startup
CNC machined 6061 T-6 aluminum endbells and motor can
13AWG high strand count silicone insulated wires with 4mm male bullet
connectors
Four pole configuration for maximum efficiency at high RPM
ROAR standard sensor port and labeled connections
Replaceable front end bell/bearing assembly and rotor/shaft assembly
Sidewinder ESC
5.0V,2.0A fixed BEC (Battery Eliminator Circuitry)
Reverse maybe disabled for racing
Fully programmable Castle feature set using the Castle USB Adapter
(not included) and downloadable Castle Link Windows software
Removable cooling fan
Proportional brake
One year limited warranty on ESC beginning at date of purchase
1410 1Y 3800Kv 4-Pole Sensored Brushless Motor, Sensor Wire, Power
Leads with 4mm Male and Female Castle Bullet Connectors and three
3x5mm Socket Head Cap Screws
Sidewinder ESC with Cooling Fan, Battery Connectors, On/Off Switch
Battery connectors to mate with selected battery
LiPo battery with at least a 5000mAh rating and a discharge rate of
at least 30C (or 25C batteries such as Traxxas Power Cells)
Do not attempt to use NiMH cells in extreme setups
Motor;
Input Voltage Range: 2-3S LiPo
Kv: 3800
Max RPM: 100,000
Length: 2.1" (52.7mm)
Diameter: 1.4" (36mm)
Shaft Diameter: 1/8" (3.17mm)
Shaft Length: 0.61" (15.5mm)
Weight: 8.4oz (237g)
Mounting Hole Size: M3 @ 25mm
ESC;
Input Voltage: 2s - 3s LiPo; 6 - 9 cell NiMH (2s only for Short
Course Trucks)
BEC: 5.0 volts fixed, 2 amps
Length: 1.93" (49mm)
Width: 1.48" (38mm)
Height: 0.79" (20mm)
Weight: 1.96oz (55.5g)
Motor Connectors: 4mm female bullets
Programmable: Yes with Castle Link USB Adapter (sold separately)
Telemetry Link Capable: No
*Not intended for operation while submerged in liquid. If unit is
operated in wet conditions, rinse with fresh water to remove dirt,
or corrosives, then fully dry unit.
|
