XL-5 Waterproof ESC. with Low Voltage Detection (LVD). The XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC packs impressive features that are normally only found on more expensive high-end replacement units.

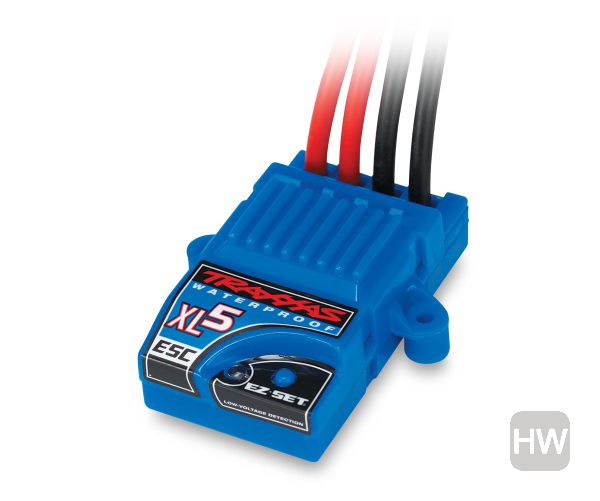

XL-5 Waterproof ESC with Low Voltage Detection (LVD)
The XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC packs impressive features that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, three throttle profiles, low voltage detection, Thermal Shutdown Protection, 4-7 cell NiMH and 2-cell LiPo compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. The exclusive and patented Training Mode™ reduces the overall power output of the XL-5 by 50%, making it easier for young or new drivers to develop their control skills before unleashing full-power.
Traxxas High-Current Connector*
The XL-5 ESC is equipped with the patented Traxxas high-current connectors for restriction-free current flow.
Patented Training Mode™
An exclusive feature that places the XL-5 ahead of the pack is the patented Training Mode. This feature reduces the overall power output of the XL-5 by 50% making it easier for new drivers to control their model. When they're ready, simply change profiles to unleash full-throttle action. Only Traxxas has it!
XL-5 Waterproof ESC Features
Built-in two-stage low voltage detection (LVD)
for Lithium Polymer (LiPo) battery use
Innovative watersealed design
15-turn motor limit for 540 size motors
12-turn motor limit for 550 size motors
Fully-proportional forward, reverse, and braking control
Programmable with three drive profiles:Sport Mode – Fwd / Brake / Rev
Race Mode – Fwd / Brake
Training Mode* – 50% Fwd / Brake / 50% Rev
EZ-Set® push-button setup
Multi-color LED
Thermal shutdown protection
Efficient, low-loss MOSFET design
Smooth, high-frequency operation
Easy installation in Traxxas models
Backed by the Traxxas Lifetime Electronics warranty
MODEL 3018R: XL-5 Waterproof Electronic Speed Control (Low-Voltage Detection, FWD/REV/Brake).
This is a test
Custom Specification
Product Specifications
Input voltage:
4-7 Cells (4.8 to 8.4 Volts DC)
Case Size:
1.23"W x 2.18"D x 0.61" H
Weight:
2.44 Ounce
Motor Limit:
15-turns** (540 Size) 12-turns** (550 Size)
On Resistance Forward:
0.007 Ohms
On Resistance Reverse:
0.014 Ohms
BEC Voltage:
6.0 VDC
BEC Current:
1A
Power Wire:
14 Gauge / 5"
Input Harness Wire:
26 Gauge / 9"
PWM Frequency:
1600 Hz
Low Voltage Detection (LVD):
2-Stage indicators, switchable (on or off)
Thermal Protection:
Thermal shutdown
Profile selection:
Sport Mode: 100% FWD, 100% brakes, 100% REV Race Mode: 100% FWD, 100% brakes, no REV Training Mode:* 50% FWD, 100% brakes, 50% REV
Single-button setup:
Yes, Traxxas EZ-Set®
**Properly geared *Patented
