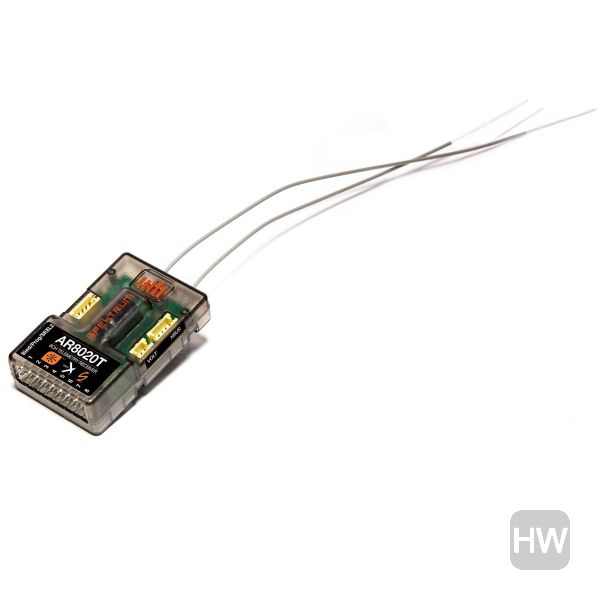

The Spektrum™ AR8020T 8 Channel Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. It features a full range telemetry, integrated barometer to provide altitude and vario telemetry data without additional purchase. Included XBUS and temperature ports can be used to add additional telemetry sensors available separately. It also features an SRXL2 port for an SRXL2 Remote Receiver, available separately, to add additional RF path redundancy. An SRXL2/Bind/Program/Batt servo header is available to connect smart devices, program and update the receiver, bind with a traditional bind plug, or connect a battery. The AR8020T also features a bind button for easy binding with no plugs necessary and offers both "SmartSafe" technology and Hold Last as well as preset failsafe types set through forward programming. Also the throttle port is Smart ESC compatible right out of the box.
Please Note:The DX7S and DX8 Gen 1 Spektrum Transmitters will not display Altitude or Variometer telemetry with the AR8020T receiver.Please Note: These transmitters do not support Forward Programming devices: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, Non-computer transmitters
To enjoy the full benefits of Smart™ technology, use the AR8020T receiver with a Smart ESC and telemetry capable Spektrum DSMX® transmitter. Vital telemetry data such as current, voltage, temperature and RPM is sent directly to your transmitter in real time.
The Spektrum™ AR8020T receiver features an integrated barometer (built-in pressure sensor) to provide altitude and vario telemetry data without the need to purchase additional sensor modules.
| Band | 2.4GHz |
| Input Voltage | 3.5 - 9V |
| Product Application | Sailplanes, Helicopters, Air |
| Product Height | 0.59" (15 mm) |
| Serial Out | SRXL2 |
| Modulation | DSMX |
| Telemetry | Yes |
| Forward Programming | Yes |
| Product Length | 1.92" (49 mm) |
| Antenna Length | 6.1" (155 mm) |
| Product Width | 1.18" (30 mm) |
| Remote Receiver Ports | 1 |
| Technology | Standard |
| Application | Air |
| Failsafe | Yes |
| Product Weight | 0.56 oz (16 g) |
| Bind Method | Bind Button |
| Range | Full |
| Telemetry Range | Full |
| Channels | 8 |
| Integrated Variometer | Yes |
Note: This is not a comprehensive list of all compatible products and even though we try our best to keep this list accurate, compatibility is not guaranteed. Please consult the manual for your vehicle, the manufacturer of the product, or contact us here at Hobby Wholesale to confirm compatibility if you are unsure.
