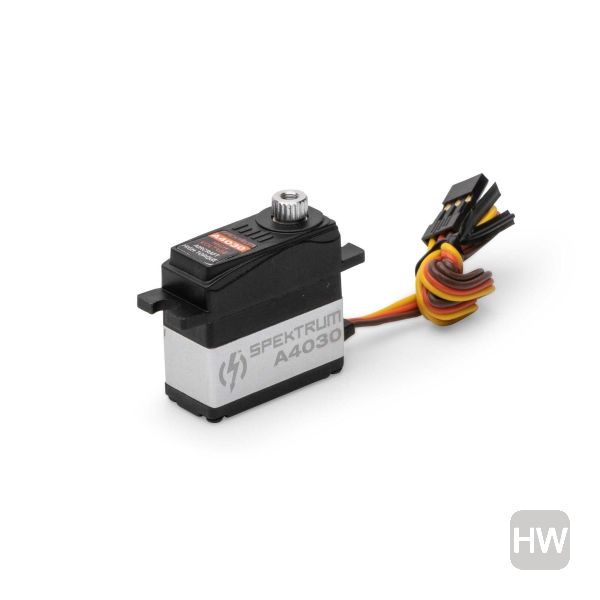

A4030 Micro Digital Torque HV MG Aircraft Servo
Brand:
Spektrum
Overview
A4030 Micro Digital HV High Torque Metal Gear Aircraft Servo
Key Features
- HV compatible
- High Torque (85 in-oz of torque at HV, and 56 in-oz at 6V)
- Extremely low deadband and high resolution with impressive holding torque for unmatched performance
- Metal Gear Train
- Aluminum center section case
This is a test
|
Custom Specification
|
Product Specifications
| Product Application |
Air |
| Product Height |
1.07 in (27.4mm) |
| Servo Type |
Digital |
| Bearing |
Dual |
| Bushing Or Bearing |
Bearing |
| Gear Type |
Metal |
| Maximum Servo Speed |
0.100-0.149 sec |
| Application |
Air |
| Max Servo Torque |
40-99 oz-in |
| Product Weight |
0.71 oz (20g) |
| Spline Count |
23 Teeth |
| Servo Operating Voltage |
4.8 - 8.4V (HV) |
| Material |
Metal / Plastic |
| Programmable |
No |
| Servo Size Category |
Micro |
| Maximum Servo Torque |
68 oz-in (4.9 kg-cm) @ 6.0V; 83.3 oz-in (6.0 kg-cm) @ 8.4V |
| Connector Type |
Universal |
| Product Length |
1.1 in (28.0mm) |
| Product Width |
0.5 in (12.7mm) |
|
