The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks

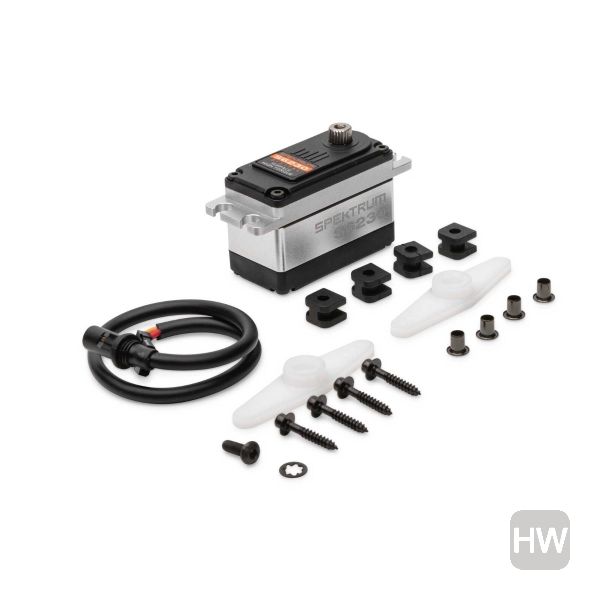

S6230 Standard Digital High Torque Metal Gear Surface Servo
The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.
Key Features
Removable wire harness with different lengths available
7075 Aluminum hard anodized output shaft/main gear with steel internal gears
Aluminum case for good heat dissipation
Aluminum mounting tabs
NMB dual main bearings
23T output shaft
Waterproof
1-Year Limited Warranty
This is a test
Custom Specification
Product Specifications
Material
Metal / Plastic
Programmable
No
Servo Size Category
Standard
Product Length
1.61 in (41mm)
Rotation Range
120 deg
Input Voltage
6.0V
Product Application
Surface
Product Height
1.18 in (30mm)
Servo Type
Digital
Connector Wire Length
7.87 in (200mm)
Product Width
0.82 in (20.8mm)
Current Draw Stall
4900mA @ 6.0V
Current Draw Idle
9.8 mA @ 6.0V
Servo Operating Voltage
6.0V
Application
Surface
Max Servo Torque
350-499 oz-in
Product Weight
2.1 oz (59.5g)
Spline Count
23 Teeth
Bearing
Dual
Bushing Or Bearing
Bearing
Gear Type
Metal
Maximum Servo Speed
0.100-0.149 sec
Wire Gauge
22 AWG
Maximum Servo Torque
311 oz-in (22.4kg-cm) @ 6.0V
