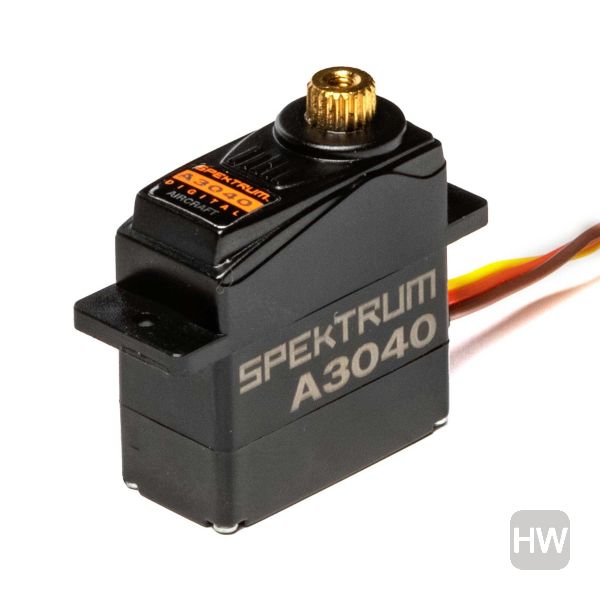

A3040 Sub-Micro Digital High Torque Metal Gear Aircraft Servo
This 0.10-second transit time (at 6 volts), 28 oz-in of torque, metal gear servo is an ideal combination of weight, speed and holding power for slow and park flyer aircraft. Ball bearing support around the output shank helps keep the servo precise for many flights to come.
Choose the A3040 servo for electric aircraft and sailplanes where the robust nature of metal gears is desired. The low deadband technology means that you’ll enjoy reliable accuracy and precision.
| Bearing | Single |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Maximum Servo Speed | 0.100-0.149 sec |
| Product Application | Air |
| Product Height | 1.00" (25.5mm) |
| Servo Type | Digital |
| Product Length | 0.93" (23.6mm) |
| Servo Operating Voltage | 4.8 - 6.0V |
| Application | Air |
| Max Servo Torque | 20-39 oz-in |
| Product Weight | 0.44 oz (12.6 g) |
| Maximum Servo Torque | 23 oz-in (1.66 kg-cm) @ 4.8V; 28 oz-in (2 kg-cm) @ 6.0V |
| Material | Plastic |
| Programmable | No |
| Servo Size Category | Sub-Micro |
| Product Width | 0.45" (11.5mm) |
