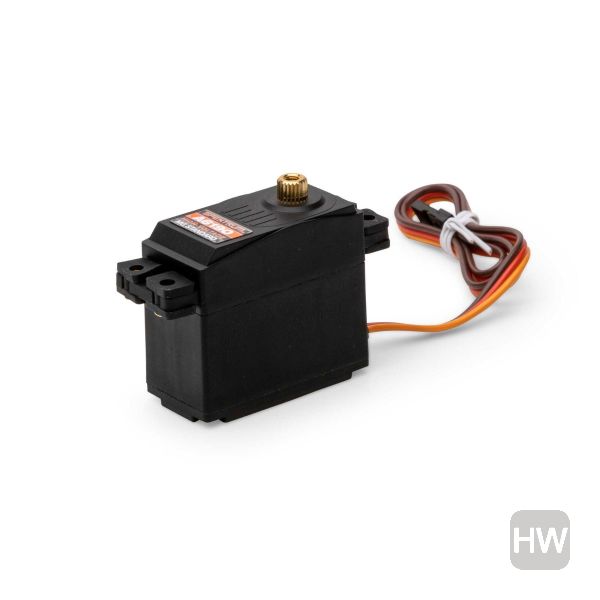

The Spektrum A6190 Metal Gear High Voltage Digital servo offers impressive performance for pilots looking for an excellent value standard size servo for their Sport and Trainer aircraft. High voltage capable, the A6190 can produce 8.3kg-cm (115 in-oz) of torque at 0.17 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a 5-pole ferrite motor and is supported by dual ball bearings for smooth operation. It also features low deadband and precise position control. Like all Spektrum servos, the A6190 delivers reliability, consistency and performance that are second to none.
| Servo Operating Voltage | 4.8 - 8.4V (HV) |
| Product Width | 0.78" (20 mm) |
| Maximum Servo Torque | 90 oz-in (6.48kg-cm) @ 6.0V; 98 oz-in (7kg-cm) @ 7.4V; 115 oz-in (8.3kg-cm) @ 8.4V |
| Application | Airplane |
| Overload Protection | No |
| Product Weight | 1.9 oz (54g) |
| Spline Count | 23 - Tooth |
| Water-Resistant | No |
| Bearing | Dual BB |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Deadband | <1µs |
| Input Voltage | 4.8V-8.4V |
| Product Application | Air |
| Product Height | 1.58" (40 mm) |
| Servo Type | Digital |
| Product Length | 1.47" (37 mm) |
| Material | Plastic |
| Programmable | No |
| Servo Size Category | Standard |
| Connector Type | Universal |
| Maximum Servo Speed | 0.22 sec/60 deg @ 6.0V; 0.17 sec/60 deg @ 7.4V; 0.13 sec/60 deg @ 8.4V |
