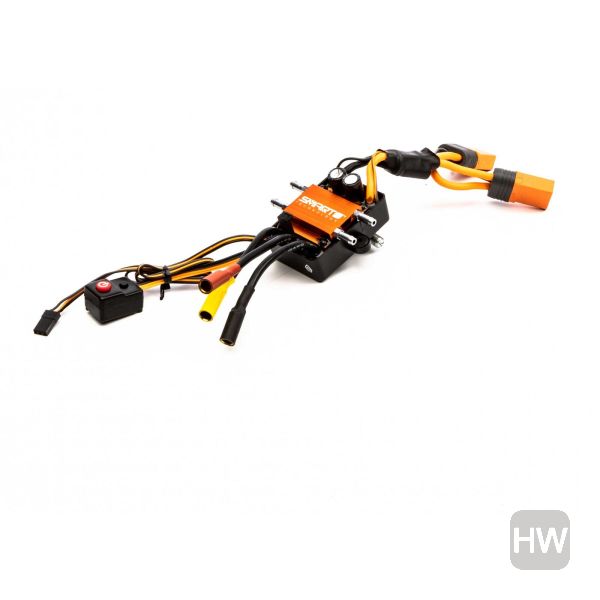

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.
Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
The all-weather, waterproof design of Spektrum™ Firma™ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.
Firma™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.
No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including RPM, voltage, temperature, balance, capacity, and speed.*
*See compatibility chart for more information.
When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!
Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma™ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.
The Firma™ ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.
| Application | Surface |
| Auto Cutoff | Yes |
| BEC Continous Current | 5 |
| Low-Voltage Cutoff Programmable | Yes |
| Overload Protection | Yes |
| Product Weight | 9.9oz (280g) |
| BEC | Yes |
| BEC Voltage | 6V |
| Input Voltage | 3S - 8S LiPo |
| Motor Output Lead | 6.5mm |
| Product Application | Surface |
| Product Height | 1.8" (44mm) |
| Amperage | 120A or larger |
| BEC Type | Switch Mode |
| Max Input Voltage | 29.V |
| Maximum Burst Current | 1050A |
| Maximum Continuous Current | 160A |
| Forward | Yes |
| Reverse | Yes |
| Connector Type | IC5 |
| ESC Type | Brushless |
| Product Length | 2.7" (70mm) |
| Brakes | Yes |
| Programmable | Yes |
| Programming Options | Button, Programming Box, Smartlink App, On Screen Text Gen |
| Battery Input Lead | IC5 |
| Product Width | 3.03" (77mm) |
| Technology | Smart |
Note: This is not a comprehensive list of all compatible products and even though we try our best to keep this list accurate, compatibility is not guaranteed. Please consult the manual for your vehicle, the manufacturer of the product, or contact us here at Hobby Wholesale to confirm compatibility if you are unsure.
