RC OIL GEAR DIFFERENTIAL UNIT. Xv-02/Tt-02. This is a new gear differential unit for use on the XV-02 and TT-02 chassis. When using it on the TT-02 chassis, it allows you to tune the differential action, for the front and rear, with the use of different viscosity oils.
This is a new gear differential unit for use on the XV-02 and TT-02 chassis. When using it on the TT-02 chassis, it allows you to tune the differential action, for the front and rear, with the use of different viscosity oils. When using it on the XV-02, you can use it not only for the front and rear diffs, but also as a center oil-filled diff unit, which will give you even more tuning options!
When using as a center oil-filled diff unit, on the XV-02 chassis, make sure to use with Item 22050 (06 Module Spur Gear 70T).

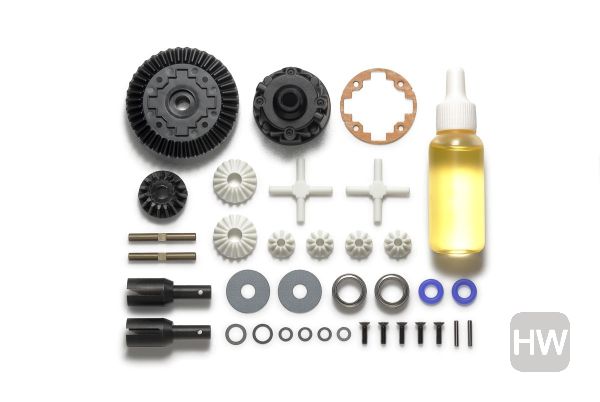

Differential Joints x2
Gear Differential Ring Gear (39T) x1
Bevel Pinion Gear (for 39T gear) x1
Differential Case x1
Gasket x1
GV Gears x2
2.8x23.4mm Cross Shafts x2
2x8mm Countersunk Hex Head Screws x4
5mm O-Rings x2
5x15.2x0.2mm Shims x2
5x7x0.1mm Shims x2
3x5x0.1mm Shims x4
1280 Ball Bearings x2
Silicone Oil #3000
Compatible with XV-02 and TT-02 chassis cars.
When using on TT-02 Chassis, use items: 54623 , 51700 , 51444
