E12-0 Engine Std (3)

Overview

E12-0 Engines

• 3 – E12-0 Engines
• 4 – Starters
• 4 – Starter Plugs

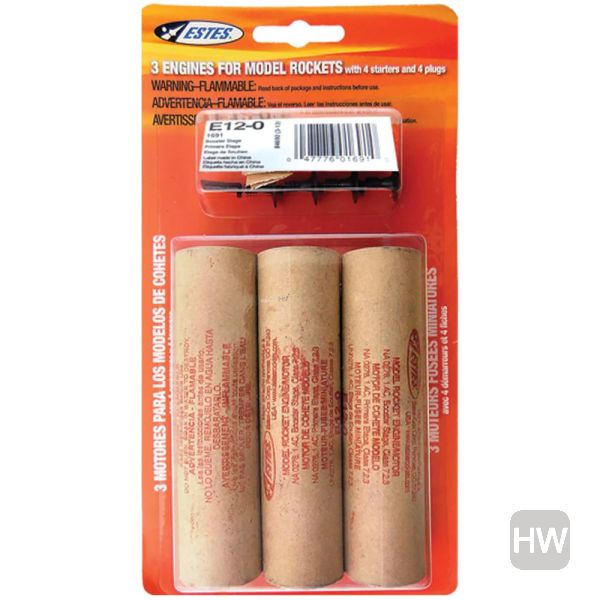

The Estes E12-0 engine is a booster stage engine designed for model rocket flight and has to be used with another 24 mm engine. This engine is for flights in rockets weighing less than 16 ounces, including the engines. Each package includes 3 engines, 4 igniters and 4 igniter plugs.

Technical Specifications

Total Impulse: 28.80 N-sec

Time Delay: None

Max Lift Weight: 16.0 oz (454 g)

Max Thrust: 31.30 Newtons (7.0 lbs)

Thrust Duration: 2.60 Seconds

Length: 3.8 in. (9.7 cm)

Diameter: 24 mm

Weight: 2.05 oz. (58.1 g)

Propellant Weight: 1.3 oz (36.9 g)
