Plasma Edge II TT-02B Painted

Overview

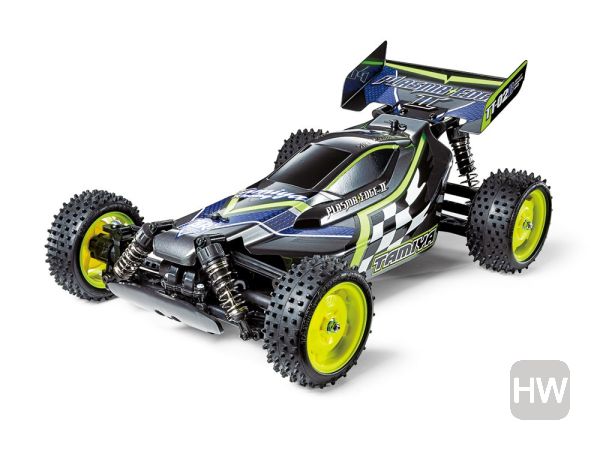

1/10 RC Plasma Edge II Gunmetal (TT-02B chassis)

The fearless gunmetal body can be completed simply by sticking on some stickers!

This is an assembly kit for an electric radio-controlled buggy that employs a shaft-driven 4WD. The Plasma Edge II Gunmetal has a wedge-shaped polycarbonate body and large rear wing that exerts downforce over the entire body, painted in gunmetal and pre-cut. Simply stick on some stickers with a checkered flag or V-shaped graphics on the nose to complete the fearless body. In addition, the black-colored CVA dampers tighten up the feet, and the bright fluorescent yellow star dish wheels are also noteworthy. The chassis is the TT-02B, a shaft-driven 4WD that is easy to assemble and has excellent controllability and rough-road performance.

The TT-02B chassis, a shaft-driven 4WD that provides excellent maneuverability on rough roads

The TT-02B basic buggy chassis uses a bathtub-type main frame with a boat-shaped bottom that provides a skid effect. The 4-wheel independent double wishbone suspension is equipped with long arms and black CVA oil dampers. Not only does it have excellent road holding, but it also has the same suspension arms and uprights on both sides, making it easy to assemble. The front and rear sealed gear cases have smooth differential 4-bevel type resin differential gears built in. The top of the gear case can be removed by loosening just a few screws, making maintenance easy. In addition, by using three types of pinion gears (sold separately), you can select from four different gear ratios in combination with the standard pinion gear, allowing you to set it according to your motor and road conditions. It also comes equipped with a receiver case and motor cover to protect against dust, which are essential for off-road driving, and increase the reliability of the car.

• Highly reliable shaft-driven 4WD. Front and rear sealed gearboxes with built-in differentials make maintenance easy.
• It uses a long-arm double wishbone 4-wheel independent suspension and is equipped with black CVA oil dampers.
• Equipped with a motor cover and receiver case to prevent dust and other particles.
• Double wishbone type rear suspension. Left and right suspension arms and uprights are standardized for easy maintenance.

Basic Specifications

Length 370mm, width 250mm, height 160mm

Wheelbase 266mm

Tread = front 217mm, rear 208mm

Frame = bathtub type

Drive system = shaft drive 4WD

Differential gear = front and rear 4-bevel differentials

Steering = 3-piece tie rod type

Suspension = double wishbone 4-wheel independent

Tire width/diameter = front 32/82mm, rear 41/82mm (square spike)

Damper = CVA oil damper

Gear ratio = 10.71:1 (pinion gear included in kit)

Includes 540 type motor

Speed ​​controller = ESC specification (sold separately)
