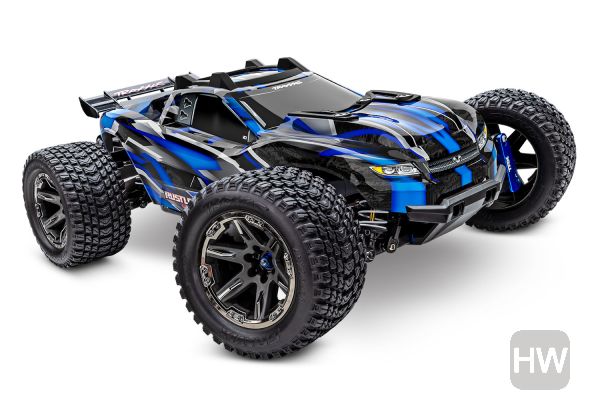

Rustler 4x4 Ultimate 1/10 RTR no Batt no Chgr Blue

• Rustler 4X4 Ultimate with Velineon VXL-3s and 3500 kV motor
• Quick Start Guide
• TQi 2.4 GHz radio system
• High quality maintenance tools

• Batteries: Rustler 4X4 VXL requires a single NiMH or LiPo battery.
• Charger: Traxxas EZ-Peak® Live charger (2971) is recommended for easy and fast charging performance
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter

High-Performance Aluminum Upgrades

• 6061-T6 aluminum C-hubs
• 6061-T6 aluminum steering blocks
• 6061-T6 aluminum rear hub carriers
• Aluminum chassis stiffener
• Aluminum axle nuts

VXL-3s™ Waterproof Electronic Speed Control

• Three Programmable Drive Profiles:
  • Sport Mode - Forward / Brake / Reverse
  • Race Mode - Forward / Brake
  • Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
• Traxxas EZ-Set® one-button setup
• Large heat sink
• Built-in two-stage low-voltage detection for LiPo batteries
• NiMH battery packs: 6-9 cells (7.2 to 10.8 volts)
• LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)

Velineon® 3500 kV Brushless Motor

• Ultra high-temperature sintered Neodymium magnets
• Optimized for power and efficiency in 1/10th scale vehicles
• Low-maintenance, unique Traxxas design
• Efficient, high-speed ball bearings
• Precision-balanced rotor
• 3500 kV
• Brilliant blue-anodized finish

Up to 65+ mph with 3s LiPo battery

• Traxxas Stability Management (TSM)®
• Improves straight line acceleration and braking on low-traction surfaces
• Maintains steering composure to allow throttle-on powerslides
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter

TQi™ 2.4 GHz Radio System with Wireless Module

• Factory-installed telemetry sensors
• TQi 2-channel transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• 5-channel micro receiver (6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug

Clipless ProGraphix® Body

• Easy one-handed removal
• Reinforced inner cage
• Strong oversized latch
• Rugged roof rollover protector
• Molded composite plastic wing

Chassis

• Low-CG design for responsive handling
• Modular composite tub design
• Latching battery hold-down
• Reinforced integrated wheelie bar
• High-approach front bumper to climb curbs

Suspension

• Adjustable front and rear sway bars
• Adjustable toe and camber links
• New impact-resistant suspension arm composite
• Aluminum PTFE-coated GTR Shocks
• 70% more oil capacity than standard Ultra Shocks™
• Threaded bodies with adjustable spring collars

Steering

• High-speed metal gear 2075R servo
• Dual bellcrank design with integrated servo saver

Drivetrain

• New extreme heavy-duty driveshafts
• Oil-filled steel gear front and rear differentials
• Large 32-pitch gearing
• Torque Control™ heavy-duty slipper clutch with aluminum pads
• Anodized-aluminum center driveshaft

Wheels and Tires

• Large 2.8″ charcoal gray RXT™™ wheels with black chrome beadlock trim
• 2.8″ Gravix™ tires

Sealed Ball Bearings

Hex hardware with Rust-Resistant Black Oxide Coating

Rustler 4X4 Ultimate’s 2.4 GHz TQi transmitter comes with a factory-installed Wireless Module to access the full range of powerful TQi tuning and telemetry tools on your mobile device. Use the free Traxxas Link™ app to control steering and throttle sensitivity; steering percentage; braking strength; and throttle trim by simply touching and dragging the sliders on the high-definition graphic interface.

The factory-installed body reinforcements provide added protection for your Rustler during extreme driving. These high-strength composite reinforcements help spread impact forces through the body, ensuring long-lasting fun through the toughest landings and hardest hits.

Pioneered on the 60+ mph XRT®, Gravix race tires are a revolutionary new hybrid design with densely packed biting edges and sipes. They deliver outstanding grip on hard-packed surfaces along with fast and quiet-running precision on pavement.

Factory-installed telemetry sensors collect and record Rustler 4X4 Ultimate’s telemetry data as you drive. Add the free Traxxas Link app to your mobile device to view real-time speed, RPM, temperature, and battery voltage data. The full-color app dashboard is fully customizable with up to nine different dial or digital readout gauges.

Rustler's innovative charcoal gray low-CG chassis positions weight down low for aggressive handling. A wide track and extended wheelbase keep Rustler planted in the turns to provide the perfect balance of stability and quick responses.

Large 2.8″ RXT wheels give Rustler 4X4 Ultimate terrain-conquering ground clearance with a splash of style. Black chrome beadlock trim contrasts the charcoal gray wheels for a high-tech look.

GTR shocks represent the peak of suspension technology. The blue PTFE-coated aluminum shock bodies hold over 70% more oil than the standard Ultra Shocks™ and their slick titanium-nitride coated shafts resist scuffing, increase durability, and eliminate "stiction." X-ring seals keep oil in and dirt out for smooth, consistent damping, and plush suspension action. Spring preload and ride height changes are as simple as turning the threaded collars--no spacers required.

6061-T6 aluminum stub axle carriers add both strength and beauty to Rustler 4X4 Ultimate without compromising its carefully tuned suspension geometry.

The color-matched center driveshaft is formed from extruded aluminum and extremely lightweight for lower rotating mass. There are no dogbones to wear out, no drive cups to wobble and the shaft runs perfectly straight and true with superior rigidity and durability.

Rustler 4X4 Ultimate needs a fast and powerful servo to match its lightning-quick reflexes. The fully waterproof 2075R digital metal gear servo combines commanding steering authority with the superior durability of all-metal gears for the ultimate driving experience.

A brightly anodized aluminum chassis stiffener provides structural reinforcement for high loads and hard landings. Made from thick extruded aluminum, the oval-shaped stiffener increases torsional rigidity and dramatically strengthens Rustler 4X4 Ultimate’s chassis to reduce flex.

Rustler’s aluminum wheel nuts lock tightly onto the wheels for intense tire-shredding action. The color-matched anodized finish contrasts the dark wheels for maximum impact.

Rustler 4X4 Ultimate’s caster and steering blocks combine the strength of 6061-T6 aluminum with carefully engineered steering and suspension geometry. The brilliant-blue anodized finish adds high-tech style with laser-etched logos to show off your genuine Traxxas performance parts.

Rustler 4X4 Ultimate’s front and rear sway bars reduce chassis roll and increase corner speed on high-traction surfaces—perfect for hard-packed tracks and pavement running. Adjustable linkages allow for fine tuning to suit different tracks and conditions.
