The Stampede® name is synonymous with off-road fun. With a top speed of 30+ mph and drive-over-anything ground clearance, Stampede rips through grass and powers over curbs. Fully waterproof electronics give Stampede an all-access pass to make even the wildest all-weather adventures possible. Factory-installed Extreme Heavy-Duty suspension components and clipless body convenience make Stampede better than ever.

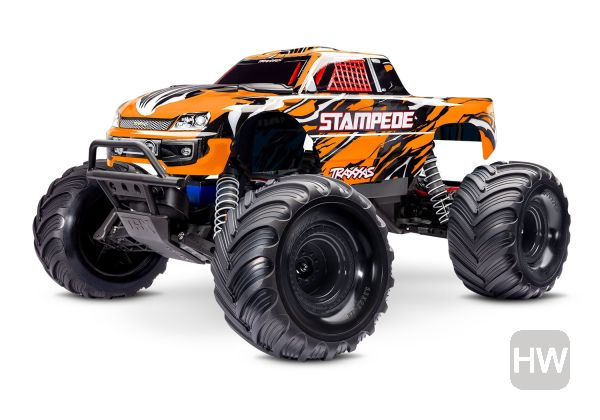

MODEL 36254-8: Stampede® 2WD XL-5: 1/10 scale monster truck, fully assembled, waterproof, Ready-To-Race®, with TQ™ 2.4 GHz radio system, XL-5™ electronic speed control, 8.4 V NiMH 3000 mAh Power Cell™ battery, 4-amp USB-C fast charger, and clipless painted body.
Clipless Monster Truck Body
High-Performance Waterproof XL-5™ Electronic Speed Control
Titan® 12T 550 Brushed Motor
Extreme Heavy-Duty Parts Installed
TQ™ 2.4 GHz 2-Channel Radio System
Includes Battery and USB-C Charger
Easy Access Battery Compartment
Transmission and Driveline
Tough Fiber-Composite Monocoque Chassis
Steering
Suspension
Springs and Shocks
Wheels and Tires
Precision Hex Hardware
Stampede comes outfitted with factory-installed Extreme Heavy-Duty suspension components for ultimate strength and durability. The rear axle carriers, caster blocks, and steering blocks are beefed up with more material and stronger construction.
Stampede includes a powerful 8.4-volt 3000 mAh Traxxas Power Cell rechargeable NiMH battery pack to reach top speed. Fast 4-amp charging is available virtually anywhere thanks to the included 45+ watt USB-C battery charger with iD® technology.
Stampede reaches its blazing 30+ mph top speed thanks to a powerful Titan® motor and XL-5™ speed control. An integrated cooling fan draws air into the motor to keep temperatures down. The XL-5 ESC provides smooth, reliable power with EZ-Set® one-button setup and three drive profiles.
Stampede’s tough clipless body holds firm no matter how rough the action gets. Heavy-duty latches grip the body tightly, but release in just seconds to access the chassis. Stampede’s hidden latching system replaces time-consuming and inconvenient body clips with large, reinforced panels to resist pull-through damage.
Stampede’s patented wheelie bar offers four-position adjustments for complete wheelie control. The durable nylon composite mount offers an extra level of protection for the motor and transmission case.
Stampede rides on large 2.2″ monster truck wheels mounted to Terra Groove tires. Terra Groove tires emulate the "hand carved" look of the full-size treads. The unique rubber compound hooks up for maximum acceleration and grip on a wide variety of surfaces including dirt, grass, pavement, and rocks.
The large 550-size Titan motor delivers dirt-roosting torque and lightning-quick acceleration. The integrated cooling fan lowers running temperatures for more fun behind the wheel. The Titan 12T requires very little maintenance and provides consistent performance run after run.
Stampede’s oil-filled Ultra Shocks utilize X-ring technology for a perfect seal and super-smooth performance. They are fully tunable with a wide range of oils, springs, and pistons. Features include pressure bladders for air/oil separation and spring clips to precisely change the ride height and spring pre-load. They can be renewed in minutes with our inexpensive rebuild kits.
Stampede’s patented sealed receiver box gives you the freedom to drive where you want, when you want. The antenna and servo wires route neatly through a special water-tight seal. A blue O-ring seals the receiver box to protect the receiver from water.
The TQ’s advanced programming provides long-range control with smooth, glitch-free performance. 2.4 GHz technology allows you to race multiple vehicles side by side without interference. The TQ’s ergonomic design is comfortable for all-day driving with an internal antenna that is impervious to damage.
The waterproof XL-5™ electronic speed control packs powerful safety and convenience features like three separate drive profiles, low-voltage detection for LiPo batteries, and Thermal Shutdown Protection to prevent overheating. Traxxas' patented Training Mode™ reduces power by 50%, making it easier for new drivers to develop their control skills before unleashing full power.
With 4-inches of center ground clearance, Stampede goes places other trucks can't! Stampede easily tackles real world obstacles such as tall grass, curbs, and rocks.
Stampede’s innovative clipless body uses secure latches for quick and easy removal. No posts, no clips-just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift to access the chassis in just seconds.
Durable one-piece camber links are perfect for bashing because they maintain proper suspension geometry and never require adjustments. Captured rod ends provide unmatched durability, and they won't pop off.
A monster truck needs a powerful steering servo for responsive performance, and Traxxas delivers with the 2056 high-torque servo. This waterproof steering servo uses O-ring seals to keep the fun going when things get wet. Waterproof for all-weather action, the 2056 provides 80 oz-in of steering muscle.
Stampede's hex-drive hardware provides a more positive and secure connection than other fasteners. The black-oxide coating provides a rust resistant high-tech look and feel.
Stampede’s rugged tube-style front bumper helps ward off crash damage to protect the chassis. The bumper also features bosses to mount accessory LED lights.
Stampede comes outfitted with factory-installed Extreme Heavy-Duty suspension components for ultimate strength and durability. The rear axle carriers, caster blocks, and steering blocks are beefed up with more material and stronger construction.
The sealed gearbox protects the transmission components from dirt and rocks. The motor plate’s finned cooling channels allow the Titan's internal fan to pull air through the motor for superior cooling.
The Magnum 272’s™ all metal gears ride on ultra-smooth sealed ball bearings. The bulletproof Torque-Control™ slipper clutch and metal transmission gears are ready to handle any power system upgrade including the extreme Velineon brushless power system.
Semi-metallic pads and finned aluminum alloy pressure plates dissipate heat and provide consistent traction. The semi-metallic friction material remains stable across a wide temperature range to provide smooth, linear engagement. Spur gears can be removed and replaced without altering the slipper adjustment.
The planetary gear differential uses hardened steel internal gears for maximum strength during rigorous off-road bashing. This type of differential requires virtually no maintenance, and its efficient design puts maximum tire-shredding power to the wheels.
| Name: | Stampede 2WD HD w/USB-C |
|---|---|
| Type: | Monster Truck |
| Speed: | 30+ mph with 7-cell battery |
| Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 4.08 pounds (1.85 kg) |

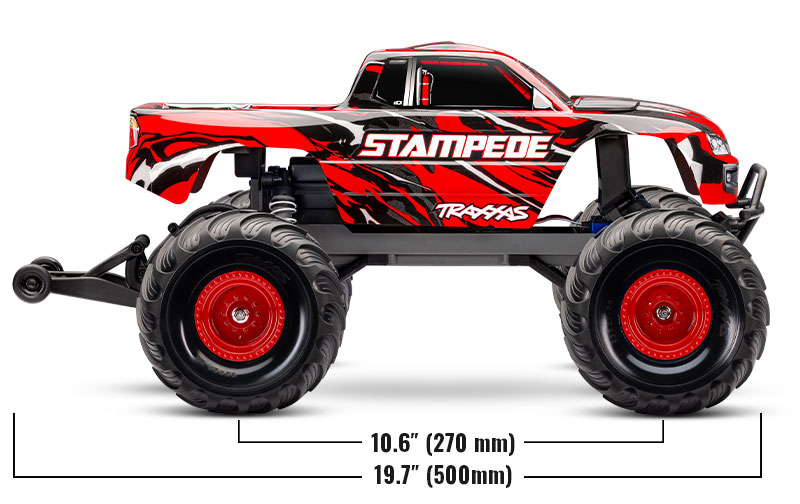

| Length: | 16.25 inches (413 mm) |

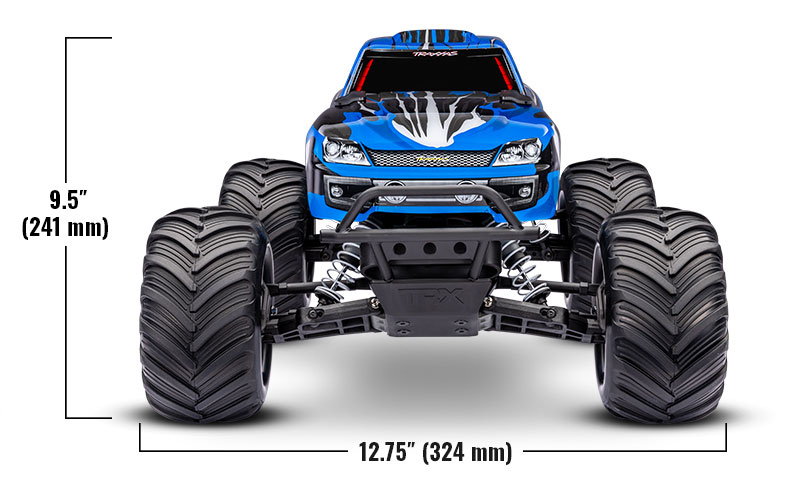

| Width: | 12.75 inches (324 mm) |
| Track: | 12.75 inches (324 mm) |
| Height: | 9.5 inches (241 mm) |
| Wheelbase: | 10.63 inches (270 mm) |
| Center Ground Clearance: | 4 inches (102 mm) |
| Driveline: | 2WD |
| Transmission: | Magnum 272™ |
| Differential Type: | Planetary steel gear |
| Gear Ratio (Internal): | 2.72 (final drive: 12.34) |
| Gear Pitch: | 48 pitch |
| Steering Servo: | 2056 high-torque waterproof |
| Radio System: | TQ™ 2.4 GHz 2-channel radio |
| Battery Compartment Specs: | 164 mm X 46 mm X 26 mm |

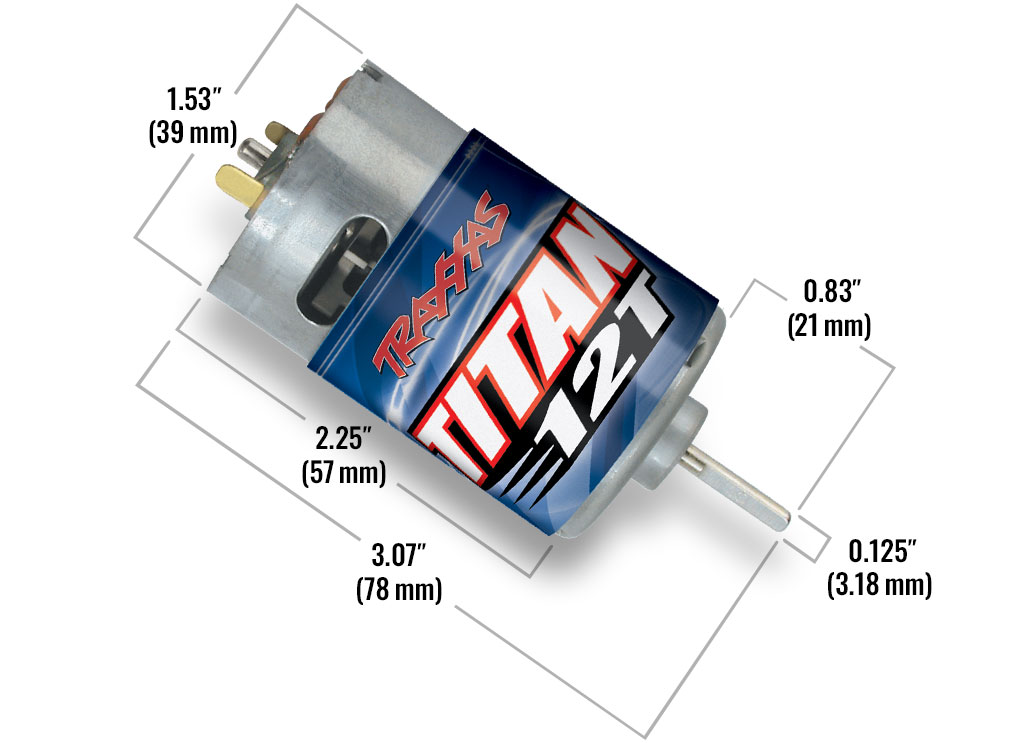

| Name: | Titan 12T 550 |
|---|---|
| Type: | High-speed brushed motor |
| Weight: | 8.47 ounces (240 g) |
| Length: | 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Diameter: | 1.41 inches (36 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | Bullet |

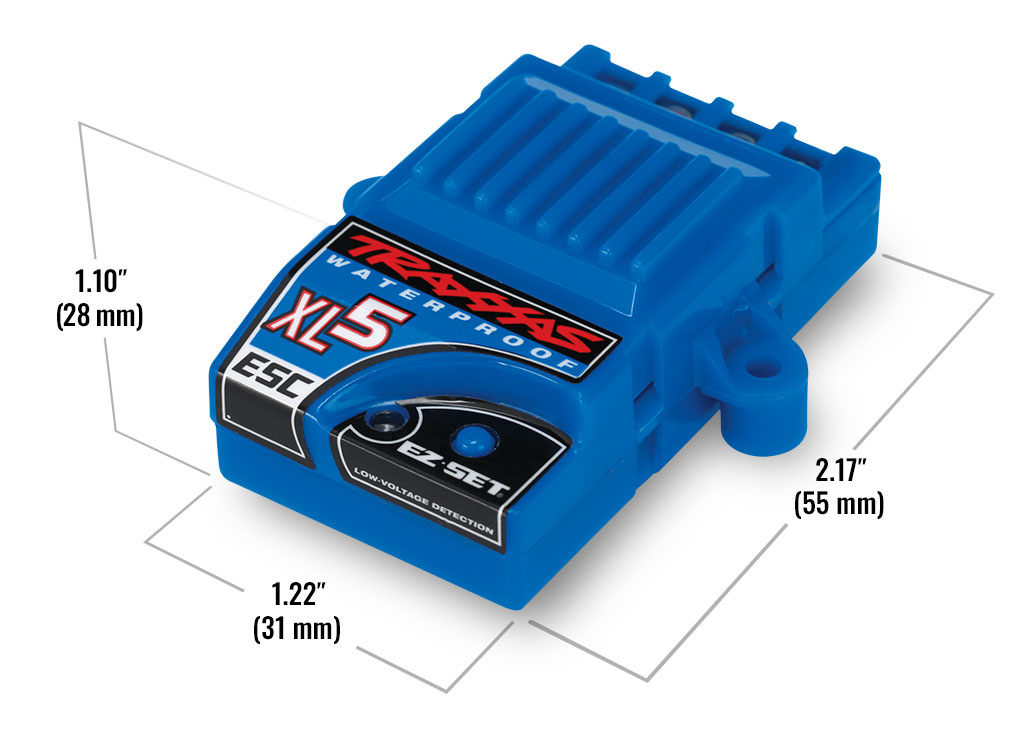

| Name: | Waterproof XL-5™ ESC with low-voltage detection |
|---|---|
| Type: | Brushed |
| Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) |
| Weight: | 2.44 ounces (69 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| Power Wire: | 14 gauge |
