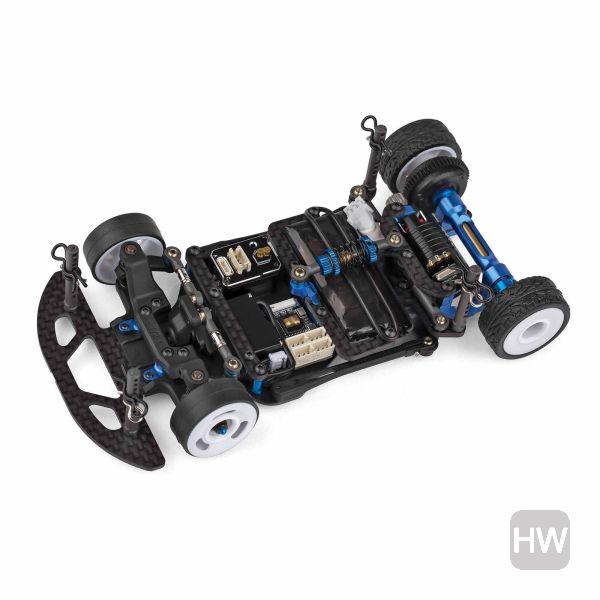

1/28 RC28 2WD On-Road Team Kit. This compact on-road race car is designed with the same engineering precision found in every AREA 51-developed product. Though small in scale, the RC28R delivers big performance in an easy to set up package.
This compact on-road race car is designed with the same engineering precision found in every AREA 51-developed product. Though small in scale, the RC28R delivers big performance in an easy to set up package. Featuring a fixed-arm front suspension with included optional molded upper arms for tuning caster and camber. The torsion side links (soft, medium, and hard included) replace the need for a side spring making setup easy while adding performance in areas a conventional spring does not. The battery holder design ensures quick access without disturbing the center shock.
The steel chassis plate provides a low center of gravity while the insert adjustable roll center enables chassis roll adjustment based on the grip level. The pitch, roll and droop can further be tuned/Adjusted with the threaded aluminum center shock, spring collars and side damper tubes. The two-piece rear pod allows quick axle height adjustment utilizing Factory Team carbon fiber shims. Fine-tune Ackermann on the fly with the adjustable servo mount. Compact, tunable, and designed to race, the RC28R is built for high performance and fun—even in tight spaces.
What's Included
In the Box
(1) 1/28 RC28 2WD On-Road Team Kit
Needed to Complete
1/28 On-Road Body
R/C two channel surface frequency radio system
AA-size batteries for transmitter
Electronic Speed Control (“ESC”)
Steering servo
R/C electric motor
Battery charger (a peak detection charger, or LiPo compatible charger)
2 cell LiPo battery pack
Polycarbonate specific spray paint
Cyanoacrylate glue (“CA”) (#1697)
Thread locking compound (#1596)
Tires
Pinion gear, size determined by type/turn or kV of motor
Features
Steel chassis plate for low center of gravity
Fixed arm style front end with optional molded upper arms to adjust caster and camber
Front bulkhead design allows for quick upper arm changes with consistent fitment and position
Optimized steering geometry with adjustable servo mount to tune ackerman on the fly
Easily removable battery holder to access the battery without removing center shock
Torsion style side links act as side spring with soft, medium, and hard options included
Adjustable rear pod roll center inserts to tune roll characteristics to grip level
Optimized roll geometry with side damper tubes
Threaded aluminum center shock with adjustable droop and spring collar
Two-piece rear pod with adjustable axle heights for different tire diameters and
ride heights utilizing Factory Team carbon fiber shims
Gear differential included and can fit other aftermarket options currently available
Hard plastic and polycarbonate body mounting options included
White wheels included that fit optional front wheel flanges to tune steering feel
Universal front bumper included
Chassis
Steel chassis plate for low center of gravity.
Front Suspension
Fixed arm style front end with optional molded upper arms to adjust caster and camber.
Side Links
Torsion style side links act as side spring with soft, medium, and hard options included.
Center Shock
Threaded aluminum center shock with adjustable droop and spring collar.
Battery Holder
Easily removable battery holder to access the battery without removing center shock.
Rear Pod
Two-piece rear pod with adjustable axle heights for different tire diameters and ride heights utilizing Factory Team carbon fiber shims.
