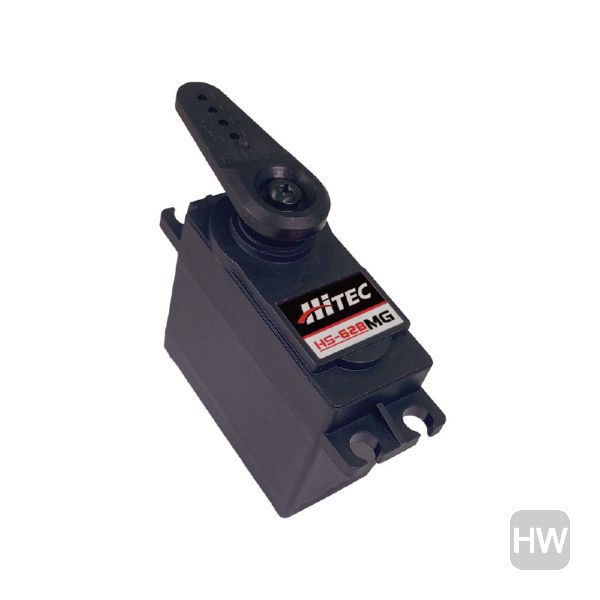

Featuring the industry standard 25-tooth output spline with 3mm hex screw and metal gears for maximum durability, the new HS-628MG is the 25-tooth version of the powerful high-speed HS-625MG. It's the perfect choice for applications requiring a fast and strong standard-size servo. Utilizing M/P and metal gear train technology, the HS-628MG is a fantastic sport servo for larger planes and 1/10th scale sport vehicles.
Operating Voltage Range: 3.5 ~ 6.8V
No Load Speed (4.8V / 6.0V): 0.18 sec/60° / 0.15 sec/60°
Stall Torque (4.8V / 6.0V): 5.5 kgf·cm (76.38 oz·in) / 6.8 kgf·cm (94.43 oz·in)
Peak Efficiency Torque (4.8V / 6.0V): 1.1 kgf·cm (15.3 oz·in) / 1.9 kgf·cm (19.4 oz·in)
Standing Current: 9mA
No Load Running Current (4.8V / 6.0V): 400mA / 500mA
Deadband: 8μs
Continuous Rotation: n/a
Connector Wire Length: 300mm (11.811 in.)
Connector Wire Gauge: 22AWG
Dimensions: 40.6 x 19.8 x 37.8mm (1.598 x 0.780 x 1.488 in.)
Weight: 55.2g (1.947 oz)
Motor Type: Cored Metal Brush
Bearing Type: 2 Ball Bearings
Case Material: Engineering Plastic
Gear Material: 1 Metal+Plastic & 3 Metal Gears
Horn Gear Spline: 25T (Ø6.0)
IP Rating: IP4X
Servo Amplifier Type: Analog Controller
