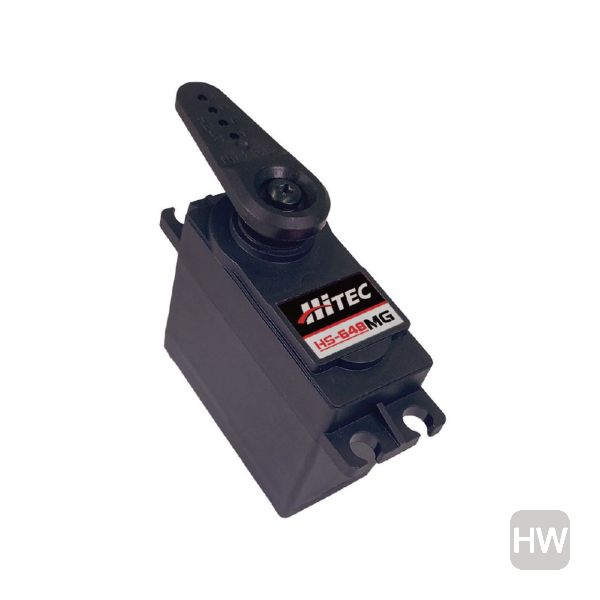

Featuring the industry standard 25-tooth output spline with 3mm hex screw and metal gears for maximum durability, the new HS-648MG is the 25-tooth version of the powerful high-torque HS-645MG. It’s the perfect choice for larger sport planes or monster trucks and buggies requiring a durable high torque servo. Equipped with unique M/P and metal gear train technology, the HS-648MG offers one of the strongest gear trains available in any servo.
Operating Voltage Range: 3.5 ~ 6.8V
No Load Speed (4.8V / 6.0V): 0.24 sec/60° / 0.20 sec/60°
Stall Torque (4.8V / 6.0V): 7.7 kgf·cm (106.93 oz·in) / 9.6 kgf·cm (133.32 oz·in)
Peak Efficiency Torque (4.8V / 6.0V): 1.5 kgf·cm (20.8 oz·in) / 1.9 kgf·cm (26.4 oz·in)
Standing Current: 9mA
No Load Running Current (4.8V / 6.0V): 350mA / 450mA
Deadband: 8μs
Continuous Rotation: n/a
Connector Wire Length: 300mm (11.811 in.)
Connector Wire Gauge: 24AWG
Dimensions: 40.6 x 19.8 x 37.8mm (1.598 x 0.780 x 1.488 in.)
Weight: 55.2g (1.947 oz)
Motor Type: Cored Metal Brush
Bearing Type: 2 Ball Bearings
Case Material: Engineering Plastic
Gear Material: 1 Metal+Plastic & 3 Metal Gears
Horn Gear Spline: 25T (Ø6.0)
IP Rating: IP4X
Servo Amplifier Type: Analog Controller
