Jato® 4X4 delivers agility and toughness in a platform that is both fun and rewarding to drive. The low-CG chassis uses performance-optimized suspension geometry and optimal weight distribution to deliver quick turn-in and precise handling dynamics. As a result, Jato 4X4 handles with the precision of a race buggy and the durability of the Traxxas' toughest off-road trucks.
Engineered for maximum strength, the Extreme Heavy Duty Upgrade Kit fortifies Jato 4X4 with a full complement of driveline and suspension parts designed to work together as a complete package. Combined with Traxxas’ HD suspension arms, Jato 4X4 delivers next-level durability at skate parks, racetracks, and backyards.
Jato 4X4’s long wheelbase and wide track width keep it planted in the corners for exceptional high-speed precision. The remarkable low-CG chassis concentrates weight below the driveshafts for neutral handling and maximum agility.
Jato 4X4’s clipless latching system delivers secure body mounting and easy removal. Battery changes are fast with no body clips to lose.
The super-efficient shaft-driven four-wheel-drive system uses a tough center driveshaft that joins the front and rear oil-filed differentials. The steel-gear differentials feed power to the wheels through huge Maxx-Duty driveshafts with upgraded U-joints.
Jato 4X4 uses new one-piece heavy duty camber and toe links with double-shear camber link mounts on the shock towers for added strength. This energy-absorbing design allows the links to return to shape if flexed and they won’t pull apart in a crash. The links are already pre-set for track-worthy handling and optimal settings.
Jato 4X4’s modular chassis features front and rear bulkheads that remove easily with just a few screws. In less than a minute using a power screwdriver, you’ll have full access for easy service and adjustment.
The waterproof BL-2s electronic speed control packs powerful features like three separate drive profiles, low-voltage detection for LiPo batteries, patented Training Mode™, and Thermal-Shutdown Protection to prevent overheating. The sensorless BL-2s 3300 Kv motor with integrated cooling fan delivers strong brushless performance with nearly zero maintenance.
The TQ™ 2.4 GHz radio system keeps the focus on having fun, not worrying about interference from other vehicles. The TQ radio’s advanced programming provides long-range control with smooth, glitch-free performance and its ergonomic design is comfortable for all-day driving.
Your RC experience should be filled with fun and adventure, not limited by the electronics. Traxxas’ patented waterproof technology gives you the freedom to live out your wildest adventures, regardless of the weather.

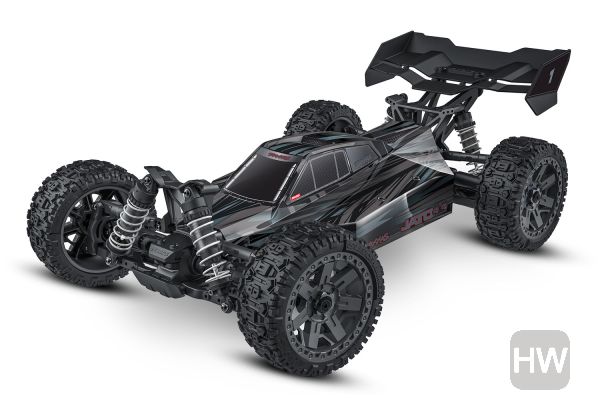

MODEL 90154-4 Jato® 4X4 BL-2s: 1/8 scale 4X4 brushless buggy, Ready-To-Race® with factory-installed Extreme HD kit, waterproof electronics, with TQ™ 2.4 GHz 2-channel radio system, BL-2s™ speed control, and clipless painted body. Requires: battery and charger.
Clipless Body
Extreme Heavy Duty Upgrade Kit Installed
TQ™ 2.4 GHz Transmitter
Steering
BL-2s™ Waterproof Electronic Speed Control
3300 Kv Brushless Motor
Chassis
Suspension
Driveline
Wheels and Tires
Sealed Ball Bearings
Hex hardware with Rust-Resistant Black Oxide Coating
The BL-2s™ brushless power system ramps up the fun with up to 60% more speed and faster acceleration than comparable brushed power systems. Improved efficiency, high-speed ball bearings, and an internal cooling fan allow Jato 4X4 to run battery after battery for all-day fun. With no brushes to wear out, the BL-2s 3300 Kv is long-lasting and requires virtually no maintenance.
Factory-installed Extreme Heavy Duty Upgrade components give Jato 4X4 the superior strength and durability normally associated with Traxxas’ toughest off-road trucks. An ultra-rigid T-Bar reinforces the chassis with Extreme HD shock towers to support the suspension. Huge Maxx-Duty® driveshafts transfer every ounce of the motor’s torque to the wheels with unsurpassed strength.
Jato 4X4 sits low and wide, concentrating its weight below the driveshafts for exceptional handling and perfect weight distribution. Extra-long GTR shocks in the front and rear maximize traction by keeping Jato 4X4’s new Sledgehammer® buggy tires in constant contact with the ground. Add the optional sway bar kit (sold separately) for ultra-flat cornering and game-changing on-track performance.
Jato 4X4’s form-fitted clipless body cuts through the wind and eliminates the parachuting effect for stable performance at speed. Tough clipless side latches hold the body securely in place but release in just seconds for fast battery swaps. Jato 4X4 incorporates the high-downforce wing from Sledge® to keep its chassis planted with rugged rollover protection as an added benefit.
Jato 4X4’s sleek, low-profile, cab forward body incorporates Sledge's high-downforce wing for extra high-speed stability. Wedged side pods provide additional front downforce for increased steering response.
Jato 4X4 rides on large 3″ buggy wheels with new Sledgehammer buggy tires for game-changing stability and control. The Sledgehammer’s wide, open-block tread design won’t clog up with dirt or debris for superior traction on all types of terrain. The wheels' 17 mm hub design creates a large contact area for extra grip to resist rounding.
Jato 4X4’s new heavy duty shock towers are beefed up with double-shear link mounts and extra material to withstand rollovers without incident. The front shock caps are protected under reinforcing ridges and the molded wing locks directly into the rear tower for extra rigidity.
A fixed gear adapter take the guesswork out of setting your gear mesh with five preset gearing positions. Insert the motor screw through the desired gearing position for a perfect gear mesh every time. The fixed positioning also keeps the gear mesh tight, even after the harshest impacts.
The patented High-Current Connectors funnel maximum power to the vehicle’s electronics. High-Current Connectors also provide the quickest, safest charge for Traxxas batteries.

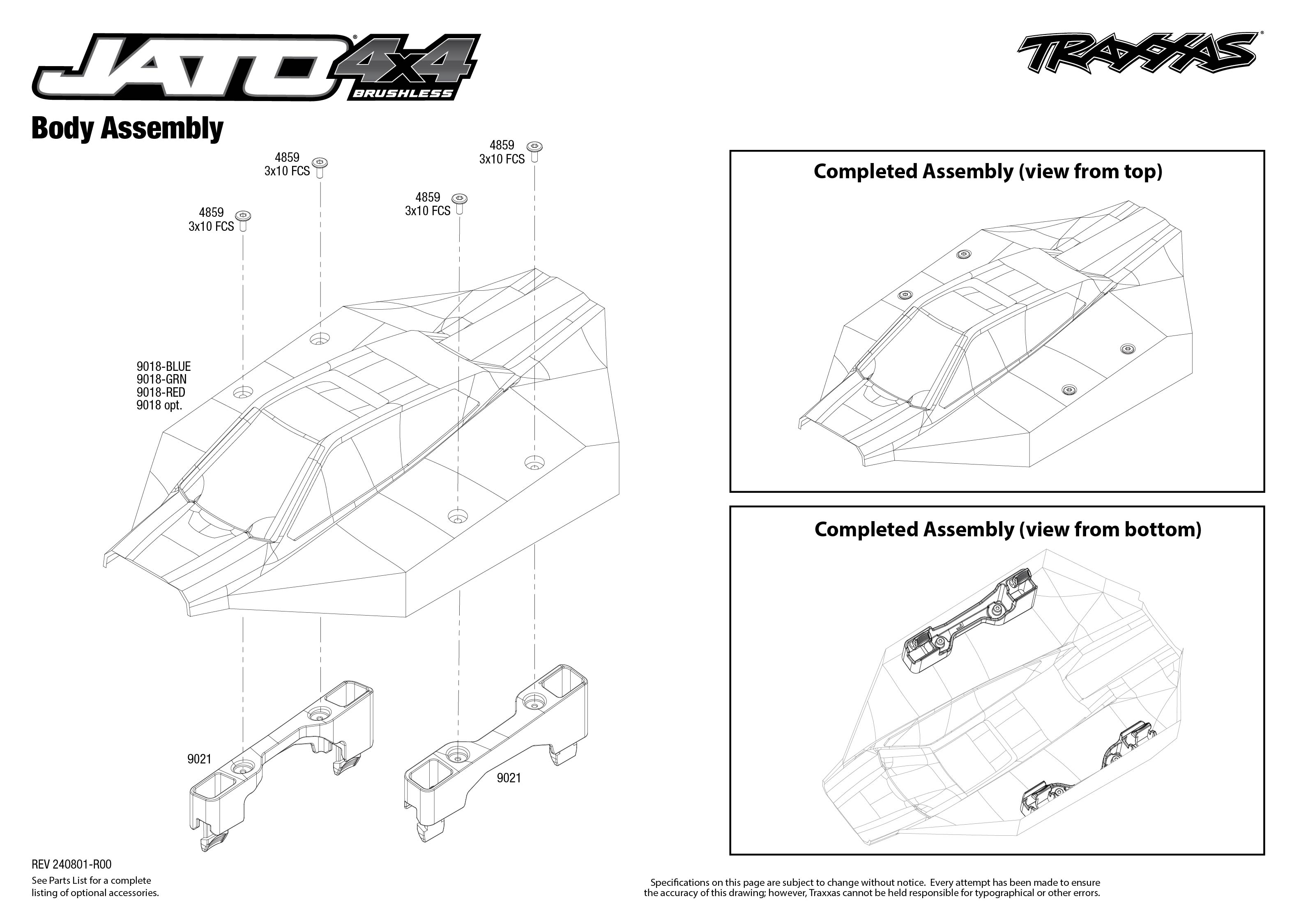

Jato 4X4 uses a rugged clipless body latching system for secure mounting and easy removal. Four side latches lock the body firmly in place to eliminate wobble and flutter at high speeds. The aggressive aero body comes pre-painted and cut with decals already applied.
Jato 4X4 borrows a page from Sledge’s top-spec engineering by incorporating its unique T-Bar chassis stiffener design. The T-Bar delivers cross-sectional stiffness no round tube can match.
The Extreme Heavy Duty Upgrade Kit comes factory-installed on Jato 4X4 for ultimate strength and durability. The axle carriers, C-hubs, and steering blocks are beefed up with more material and stronger construction.
A waterproof receiver box keeps the receiver safe and dry while still allowing easy access for maintenance. The antenna and servo wires route neatly through a patented water-tight seal for true all-weather fun.
An adjustable battery hold-down accommodates a wide variety of batteries from NiMH packs to powerful LiPo batteries. The extended battery tray allows the packs to be positioned forward or backward for front/rear weight bias tuning. An optional battery expander kit (sold separately) is available for use with oversize batteries.
In the event of signal loss due to an accidental transmitter switch-off or depleted batteries, the receiver automatically returns the throttle to neutral and holds the last commanded steering position. The fail-safe programming is conveniently built-in and does not need to be activated.
Agile handling requires a steering servo that’s both strong and fast. The included 2075 digital high-speed, high-torque servo features ball bearings for precise control and quick reflexes.
The dual-bellcrank design pivots smoothly even in the harshest conditions. An integrated cam-type servo saver protects the steering servo from crash impacts without sacrificing steering precision.
Hex-drive hardware provides a more positive and secure connection than other fasteners. The black-oxide coating provides a rust resistant high-tech look and feel.
GTR shocks represent the peak of racing technology. Their large 13 mm bores hold over 70% more oil than Ultra Shocks for consistent damping. X-ring seals keep oil in and dirt out for smooth suspension action. Spring preload and ride height changes are as simple as turning the threaded collars.
Molded from our toughest composite material, Jato 4X4’s heavy duty suspension arms provide just the right amount of flex to resist breaking, even in cold weather! From skate parks to 10-foot ramps, these suspension arms stand up to even the most punishing drivers for non-stop fun behind the wheel.
Jato 4X4’s aerodynamic bulkhead cover incorporates mounts for the optional sway bar (sold separately). Low-profile skid plates in the front and rear give Jato 4X4’s suspension maximum down travel while reducing the risk of snagging and scraping.
Jato 4X4 uses XX-long GTR shocks at all four corners for ultra-plush suspension travel to swallow up bumps and deliver incredible control. Performance-optimized suspension components provide maximum articulation without binding or interference.
Jato 4X4 utilizes full contact sealed bearings throughout the driveline to keep out the grime and grit. Less downtime for cleaning and maintaining bearings equals more run time and more fun.
A heavy duty slipper clutch uses alloy pressure plates and high-temperature aluminum pads for superior power handling. The slipper clutch delivers equal power distribution front to rear for instant throttle response through the drive system and aggressive four-wheel-drive grip.
Jato’s 4X4 driveline is built to handle standard brushless horsepower power and even the extreme Velineon® 3s brushless power upgrade down the road. The spur gear features large 32-pitch teeth for total reliability no matter how much power you pour on.
Jato 4X4’s 17 mm hex hubs create a large contact area for maximum grip on the wheel. Their splined design interlocks with the wheels using aluminum nuts that won’t let go. Best of all, the hubs are compatible with most 1/8 scale buggy wheels using a traditional 17 mm hub design. Installation and removal is quick and painless with the included wheel wrench.
Jato 4X4’s Maxx-duty® driveshafts with beefed-up U-joints are built to handle brushless power without breaking a sweat. Large 6 mm axles lock into the included 17 mm splined wheel hexes for unmatched strength and durability.
Sealed steel-gear differentials are ready to handle brushless power without costly upgrades. Silicone gaskets and X-ring seals allow the differentials to be tuned for specific running conditions by varying the viscosity of the oil inside them. Jato 4X4's modular chassis design makes differential access quick and easy.
| Length: | 20.4 inches (517 mm) |
|---|---|
| Front Track: | 12 inches (305 mm) |
| Rear Track: | 12 inches (305 mm) |
| Ground Clearance: | 1.02 inches (26 mm) (center) |
| Weight (no battery): | 5.2 pounds (2.36 kg) |
| Height (overall): | 7 inches (179 mm) |
| Wheelbase: | 12.6 inches (320 mm) |
| Shock Length (front): | 3.98 inches (101 mm) - XX-long |
| Shock Length (rear): | 3.98 inches (101 mm) - XX-long |
| Speed Control: | BL-2s™ electronic speed control |
| Motor (electric): | BL-2s™ 3300 Kv sensorless brushless |
| Overall Drive Ratio: | 12.80:1 |
| Differential Type: | Hardened steel bevel, sealed, limited slip |
| Gear Pitch: | 32 |
| Chassis Structure/Material: | Composite tub |
| Drive System: | Shaft-driven 4WD |
| Steering: | Dual-bellcrank with integrated servo saver |
| Tires: | Sledgehammer® with foam inserts |
| Tire Diameter: | 4.5 inches (114 mm) (front and rear) |
| Wheels (front/rear): | 3″ Gray buggy wheels |
| Wheel Diameter: | 3″ inches (78 mm) |
| Radio System: | TQ™ 2.4 GHz (2-channel) |
| Servo: | Waterproof digital 2075 servo (125 oz-in torque) |
| Skill Level: | 1 |
| Battery Compartment (L/W/H): | 165 mm x 50 mm x 23/26 mm |
| Required Batteries: | 4 “AA” (transmitter), Vehicle |
| Type: | BL-2s 3300 Kv sensorless brushless motor |
|---|---|
| Weight: | 7.51 ounces (213 g) |
| Length: | 3.15 inches (80 mm) |
| Diameter: | 1.42 inches (36 mm) |
| Connector Type: | Traxxas Quick Connect Motor Plug |
| Input Voltage (cells): | 6-7 Cells NiMH / 2s LiPo |
|---|---|
| Case Size: | 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) |
| Weight: | 3.07 ounces (87 g) |
| BEC Voltage: | 6.0 volts |
| Reverse Delay: | Yes, with lockout |
| Thermal Protection: | Two-stage thermal shutdown |
| Ports: | Auxiliary fan |
