Overbuilt and over-the-top, the all-new Mini Maxx® captures the engineering, unmatched power, and extreme durability that defines Traxxas Maxx® performance. Mini Maxx is the perfect, take-anywhere size, delivering 30+ mph brushless speed and legendary Maxx toughness that slides easily into a backpack.
Mini Maxx comes fully equipped with a 3500 mAh 2-cell LiPo battery optimized for maximum punch and long run times in a compact size. The included 2-amp USB-C LiPo balance charger provides quick and reliable charging with Traxxas iD® safety and simplicity.
Mini Maxx's chassis tightly integrates beefy skid plates, high-strength bulkheads, triangulated shock towers, and massive bumpers to absorb and dissipate impact energy without breakage or damaging flex. It also allows quick access to critical components for easy maintenance and repairs.
A shaft driven 4-wheel-drive system is rugged simplicity at its finest, delivering solid power and unstoppable traction to all four corners. With driveshafts and differentials originally designed for Traxxas’ toughest 1/10 scale trucks, there’s nothing Mini Maxx can’t handle. For additional tuning performance, install the optional center differential (part 10760, sold separately).
Mini Maxx uses same 2056 servo found in full-size 1/10 scale Traxxas trucks. With that much torque on hand, Mini Maxx powers through the thickest grass, sand, and mud without missing a beat. Need even more power? Mini Maxx accepts most standard size servo upgrades.
With so much power on tap, Traxxas developed a new version of the popular Sledgehammer® tires to handle Mini Maxx’s over-the-top performance. At 4″ tall, the new Sledgehammers give Mini Maxx powerful grip and towering ground clearance to overcome any obstacle that gets in its way.
The TQ™ 2.4 GHz radio system keeps the focus on having fun, not worrying about interference from other vehicles. The TQ radio’s advanced programming provides long-range control with smooth, glitch-free performance and its ergonomic design is comfortable for all-day driving.
Mini Maxx carries on the Maxx tradition of extreme power with the 1/10 scale BL-2s Brushless Power System on board. Lightning-quick acceleration and 30+ mph speed are at your fingertips for hours of non-stop fun.
Traxxas, the innovator and leader in waterproof solutions, designed Mini Maxx to deliver the same go-anywhere driving freedom as other Maxx trucks. Reliable waterproof construction extends your playground into water, snow, and mud for unlimited fun, regardless of the weather.
When too much power just isn’t enough, Traxxas has the answer. Launch your Mini Maxx into the stratosphere with the extreme power of the Velineon® VXL-3s brushless power system using the Traxxas Power-Up program. Experience 40+ mph speed with the standard 2-cell LiPo battery or over 50 mph with the optional 3-cell LiPo battery (part 2824X, sold separately).
Take Mini Maxx to the next level with the optional high-output off-road LED light kit (part 10795, sold separately). The light kit includes new bumpers with LED lights and a new roof skid plate with white LED lights in the front and red in the rear. A regulated 3-volt power supply provides consistent, flicker-free performance from beginning to end.
Traxxas makes a full line of high-performance parts and detailed accessories to get the most out of your Mini Maxx. Compatibility and fitment are never an issue when you buy genuine Traxxas products.

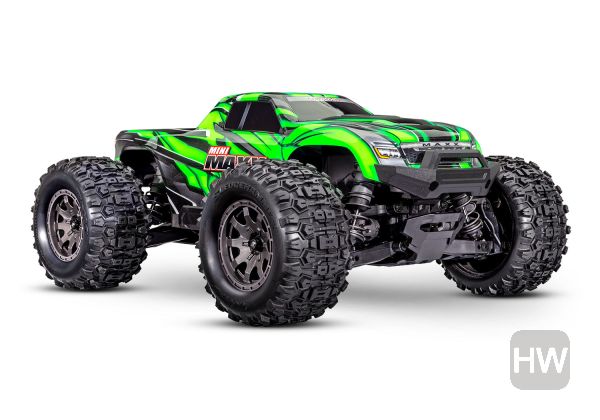

MODEL 107154-1 Mini Maxx: Maxx-scale monster truck, fully assembled, Ready-To-Race®, with TQ™ 2.4 GHz radio system, Bl-2s™ Brushless Power System, and clipless® painted body. Includes 2-cell LiPo battery and 2-amp USB-C charger.
30+ mph top speed
BL-2s™ waterproof electronic speed control
BL-2s™ Brushless Motor
Battery and Charger Included
TQ™ 2.4 GHz Transmitter
Clipless Body Mount System
1/10 Scale 4X4 Drivetrain
Modular Composite Chassis
Easy Battery Access
Steering
Suspension
Oil-Filled Ultra Shocks™
Bumpers and Skid Plates
Wheels and Tires
Hex Hardware with Rust-Resistant Black Oxide Coating
Sealed Ball Bearings
Mini Maxx does what the others can’t, in a fast, fun, and compact form that’s instantly recognizable and engineered to a zero-compromise standard for performance and durability. It’s a whole new way to experience Maxx-level fun in a powerful machine that continues the Maxx legacy for speed and absolute toughness.
The BL-2s Brushless Power System is already proven to deliver extreme power and wheel-standing torque in Traxxas 1/10 scale vehicles. Installed in Mini Maxx, BL-2s power punches well above its weight for lightning-quick acceleration and 30+ mph top speed.
Mini Maxx is engineered to a higher standard with 1/10 scale 4X4 driveline components. Large steel- gear differentials, beefy 32-pitch gears, and heavy-duty U-joint driveshafts far exceed requirements for strength and long life.
Mini Maxx fits in a backpack but it’s built to withstand all the bumps and bruises of the full-size world. Just one look at the rigid, unified structure and you know it’s a Maxx. A Maxx chassis is always engineered for ultimate strength, and Mini Maxx packs it all up in a supremely compact design.
Mini Maxx’s innovative clipless body is rock solid and easy to use. Just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift to access the chassis in just seconds. Nothing else is faster or latches more securely.
New 4″ Sledgehammer tires are ready for action with multiple layers of biting edges for sure-footed traction. Their open-block tread design clears away mud and debris and features a heavy-duty rubber compound specially formulated to resist tearing. New 2.6″ dual-profile black wheels provide extra clearance for the suspension components and give Mini Maxx a tough, menacing appearance.
Tough nerf bars protect the chassis from side impacts and provide additional side support to hold the body firmly in place.
Clipless body latches are neatly integrated into molded body reinforcements that look great and protect the body. Unlike traditional posts and clips, body reinforcements spread impact forces over a wide area to minimize the risk of pull-through damage.
Rugged impact-absorbing bumpers in the front and rear protect the chassis. The front bumper provides a high approach angle that allows Mini Maxx to climb up and over obstacles with ease. The rear bumper accommodates the optional wheelie bar.
Mini Maxx uses the same full-size oil-filled Ultra Shocks found on Traxxas’ 1/10 scale monster trucks for truly bottomless suspension travel. The Ultra Shocks’ large oil capacity and rugged design soaks up big jumps and off-road abuse for smooth driving performance. They are easy to tune with a wide range of available oils, springs, and pistons.
The modular chassis features front and rear bulkheads that remove easily with just a few screws. In less than a minute using a power screwdriver, you’ll have full access for easy service and adjustment.
A fixed gear mesh system takes the guesswork out of setting your gear mesh with multiple preset gearing positions. Insert the motor screw through the desired gearing position for a perfect gear mesh every time. The fixed positioning also keeps the gear mesh tight, even after the harshest impacts.
The waterproof BL-2s electronic speed control packs powerful features like three separate drive profiles, low-voltage detection for LiPo batteries, patented Training Mode™, and Thermal-Shutdown Protection to prevent overheating. The sensorless BL-2s 3300 Kv motor with integrated cooling fan delivers strong brushless performance with nearly zero maintenance.
A deep battery compartment shields the battery from impacts inside the reinforced chassis. A swivel clip hold-down firmly secures the battery in place for fast and easy battery swaps.
Your RC experience should be filled with fun and adventure, not limited by the electronics. Traxxas’ patented waterproof technology gives you the freedom live out your wildest adventures, regardless of the weather.
In the event of signal loss due to an accidental transmitter switch-off or depleted batteries, the receiver automatically returns the throttle to neutral and holds the last commanded steering position. The fail-safe programming is conveniently built-in and does not need to be activated.
Mini Maxx’s full-size 2056 steering servo uses dual bellcranks for zero bump steer geometry and smooth turning action in the harshest conditions. Oversize components and double-shear connections make Mini Maxx unbelievably tough. A heavy-duty, cam-style servo saver guarantees precise steering response with added protection against impacts.
Double wishbone suspension arms maintain proper suspension geometry throughout the entire range of travel. They’re modeled after Maxx with double-shear connections and extra material in critical areas for maximum strength and durability.
Hex-drive hardware provides a more positive and secure connection than other fasteners. The black-oxide coating provides a rust resistant high-tech look and feel.
Tough interlocking skid plates fit tightly into the Mini Maxx chassis to create a smooth snag-free undertray. The skid plates save wear and tear on the chassis and they’re easy to replace.
Mini Maxx's beefy suspension components are engineered for heavy-duty strength that punches well above its size class. Modeled after the full-size Maxx, the caster blocks, steering blocks, and axle carriers feature incredibly robust construction, double-shear connections, and extra reinforcing where it’s needed most.
Large, sealed bearings are utilized throughout the Mini Maxx driveline to keep out grime and grit. Less downtime for cleaning and maintaining bearings means more run time—and more fun.
Stripped gears mean a trip to the workbench, but Mini Maxx eliminates this problem with huge 32-pitch gears. Normally found in much larger 4X4 vehicles, 32-pitch gears deliver total reliability no matter how much power you pour on. Even Velineon 3-cell LiPo power is no problem for Mini Maxx’s ultra-stout driveline.
Mini Maxx relies on a direct-drive transmission for instant throttle response and maximum power delivery. Huge 32-pitch gears and a fixed gear mesh make it possible for Mini Maxx to run this ultra-responsive setup. For greater tuning control, use the optional center differential (sold separately) in place of the standard spur gear.
Fortified for hard launches and big brushless horsepower, the driveshafts used in Mini Maxx are 50% larger than standard 1/16 scale driveshafts. The oversized half shafts are built to handle 3-cell LiPo power and offer huge articulation and suspension travel.
Mini Maxx’s differentials are nearly twice the size of standard 1/16 scale differentials for bombproof durability. Silicone gaskets and X-ring seals allow you to tune the amount of locking action by varying the viscosity of the fluid inside the differentials.
| Length: | 13.58 inches (345 mm) |
|---|---|
| Front Track: | 9.94 inches (253 mm) |
| Rear Track: | 9.94 inches (253 mm) |
| Ground Clearance: | 1.06 inches (27 mm) |
| Weight: | 3.62 pounds (1.64 kg) |
| Height: | 5.39 inches (137 mm) |
| Wheelbase: | 8.66 inches (220 mm) |
| Shock Length: | 3.45 inches (88 mm) |
| Tire Diameter: | 3.93 inches (100 mm) |
| Wheel Diameter: | 2.1″ (53 mm) outer, 2.6″ (66 mm) inner |
| Speed Control: | BL-2s brushless ESC |
| Motor (electric): | BL-2s sensorless brushless (3300 Kv) |
| Transmission: | Direct-drive |
| Overall Drive Ratio: | 9.20:1 |
| Differential Type: | Planetary, steel gear |
| Gear Pitch: | 32 |
| Chassis Structure/Material: | Composite modular tub |
| Brake Type: | Electronic |
| Drive System: | Shaft-driven 4WD |
| Steering: | Double-shear bellcrank |
| Wheels & Tires: | Dual-profile wheels with pre-glued Sledgehammer® tires |
| Radio System: | TQ™ 2.4 GHz (2-channel) |
| Servo: | Waterproof high-torque 2056 |
| Top Speed: | 30+ mph |
| Skill Level: | 1 |
| Battery Tray: | 113 mm L x 41 mm W x 22 mm H |
| Required Batteries: | 4 “AA” (transmitter) |
| Type: | BL-2s 3300 Kv sensorless brushless motor |
|---|---|
| Weight: | 7.51 ounces (213 g) |
| Length: | 3.15 inches (80 mm) |
| Diameter: | 1.42 inches (36 mm) |
| Connector Type: | Traxxas Quick Connect Motor Plug |
| Input Voltage (cells): | 6-7 Cells NiMH / 2s LiPo |
|---|---|
| Case Size: | 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) |
| Weight: | 3.07 ounces (87 g) |
| BEC Voltage: | 6.0 volts |
| Reverse Delay: | Yes, with lockout |
| Thermal Protection: | Two-stage thermal shutdown |
| Ports: | Auxiliary fan |
